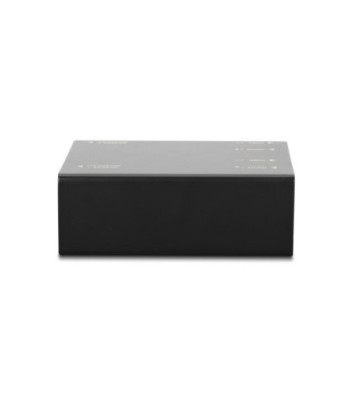

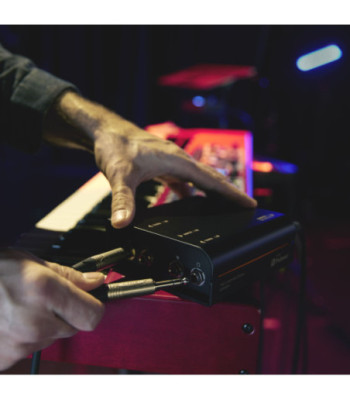

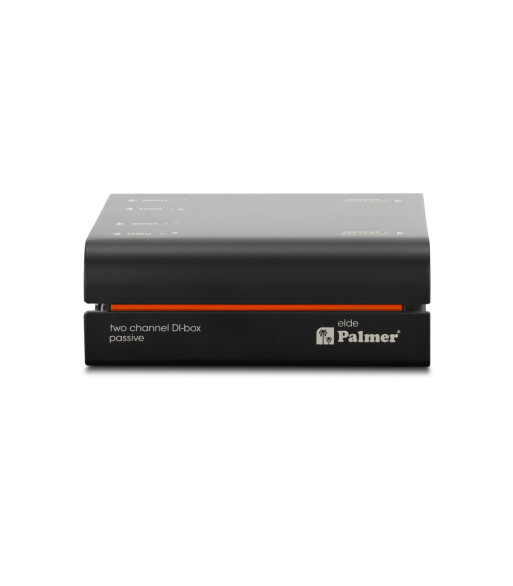

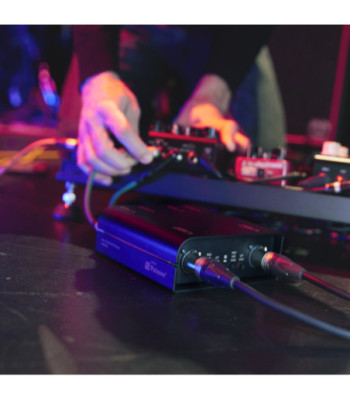

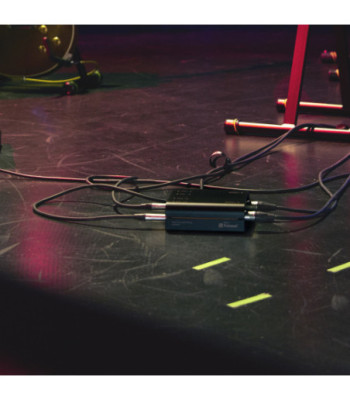

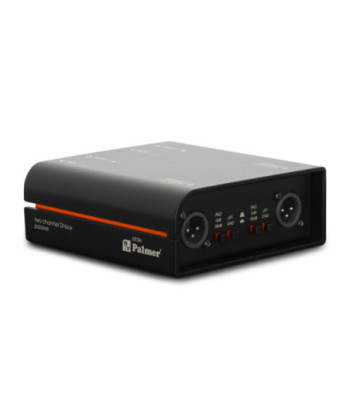

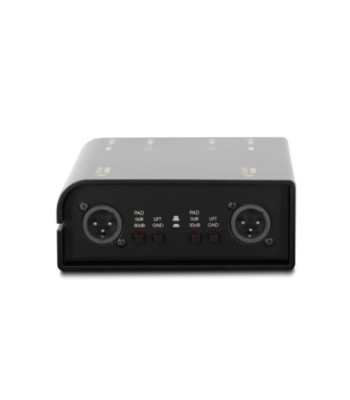

Palmer Passive 2-channel DI box

1.259,00 kr.
Inkl. moms
RIVER elde

Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That's exactly what the Palmer elde does - simply and reliably. Especially since the elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.

The inputs are each looped to a THRU Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.

The Palmer elde is a high-quality two-channel DI box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.

Antal
På fjernlager

Ref: PELDE

  • Balancing and impedance matching for guitar/bass/keyboard synthesisers
  • Two-channel model for stereo signals or two instruments
  • Eliminates ground loop hum thanks to galvanic transformer isolation
  • Extremely fail-safe, no power supply required
  • Thru-out for routing input signals to amplifiers
  • Pure and unaltered low-noise audio
  • Handles even high-level inputs without distortion
  • Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
  • Solid casing made of aluminium and steel

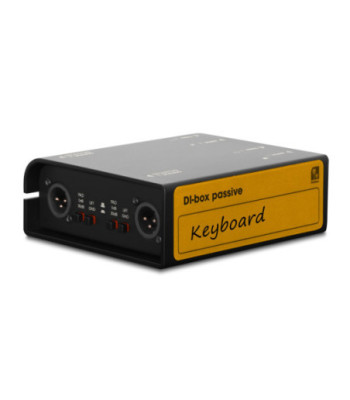

  • Incl. rewritable tour label for attachment onto the back of the elde
  • Engineered in Germany

Product typeDI box
Channels2
Typepassive
Transformer isolatedYes
Number of inputs2
input typeunbalanced

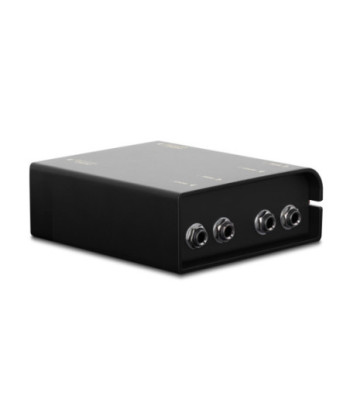

Input connectors6.3 mm jack
Number of outputs2
Output typebalanced

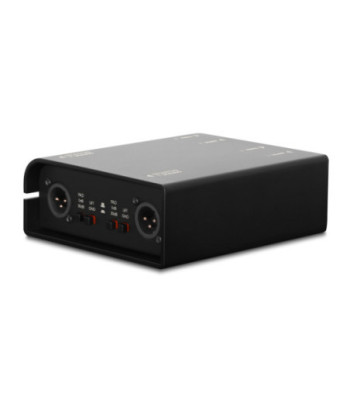

Output connectorsXLR
THRU outputs per channel1
Input attenuation (Pad)0 dB / 30 dB
Ground lift switchYes
HousingAluminium continuous casting
Dimension (H/W/D)140 x 50 x 128 mm
Weight0,66 kg
Ambient temperature during operation-20 - 70 °C
Relative Humidity< 80 %, not condensing
Accessories (included)Inscription label (tour label)
Accessories (included)rubber feet

Audio

Max. input level (< 1% THD, 20 Hz)+20 dBu
Max. input level (< 1% THD, 1 kHz)+32 dBu
Frequency response (±0,2dB, relative 1kHz)5 Hz - 80 kHz
Input impedance (1 kHz)38.5 kOhm
Output impedance (1 kHz)25 Ohm(s)
THD (30 Hz, +4 dBu, unity, unweighted)< 0,03 %
THD (1 kHz, +4 dBu, unity, unweighted)< 0,002 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)< 0,002 %
Transformer ratio10 : 1
Palmer
PELDE
