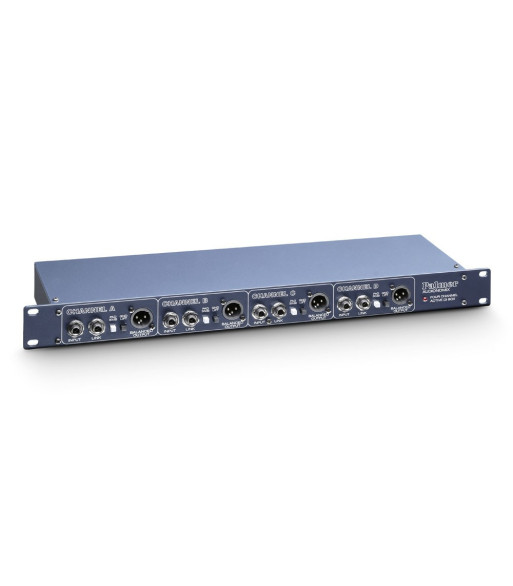

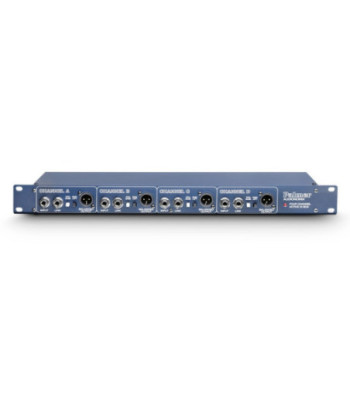

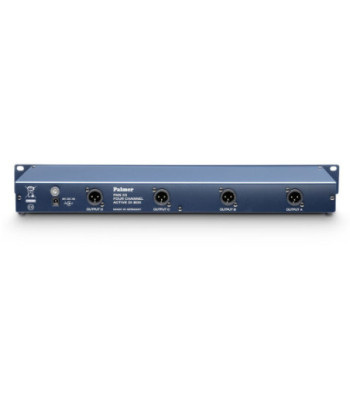

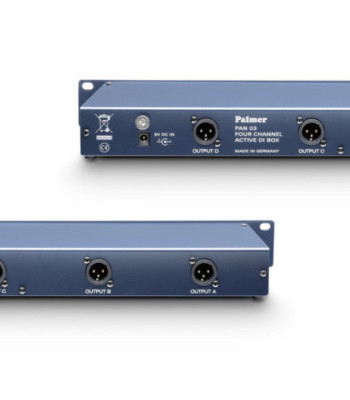

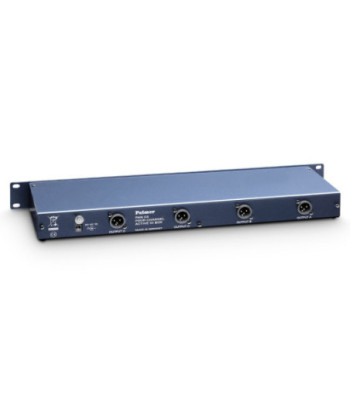

Palmer 19" DI box 4-channel active

3.499,00 kr.
Inkl. moms
PAN 03

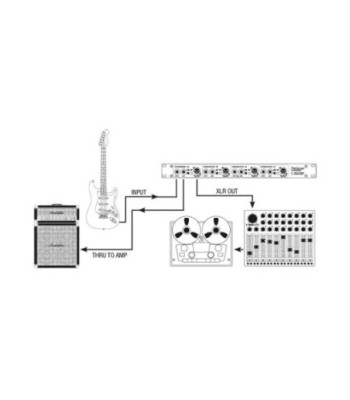

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.

Antal
På fjernlager

Ref: PAN03

Product typeDI boxes
Typeactive
Channels4
Inputs4
Input connectors6.3 mm jack
Max. input level+ 45 dBu
Input impedance(@ 60 Hz) 1 M Ohm(s)
Input pad0 / -30 dB
Number of outputs4 (+ 4 parallel XLR outs)
THRU outputs/channel1
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+ 10 dBu
Output impedance600 Ohm(s)
Frequency response10 - 20000
Transformer balancedYes
Ratio10 : 1
IndicatorsPower
Controlsattenuator
Controlsground lift
Power supplyexternal
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm
Width19 "
Depth90 mm
Height45 mm
Height1 U
Weight1,6 kg
Palmer
PAN03
