. Palmer DI box passive .
Palmer DI box passive
search
  • Palmer DI box passive
  • Palmer DI box passive
  • Palmer DI box passive
  • Palmer DI box passive
  • Palmer DI box passive

Palmer DI box passive

569,00 kr.
Inkl. moms
PAN 01

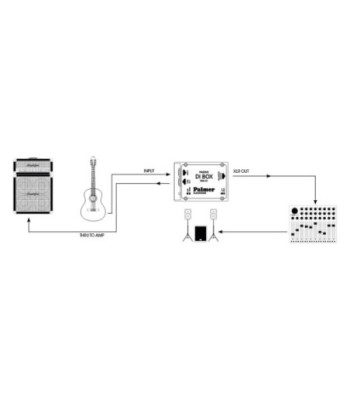

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

Antal
På fjernlager

Ref: PAN01

Product typeDI boxes
Typepassive
Channels1
Inputs1
Input connectors6.3 mm jack
Max. input level+ 54 dBu
Input impedance(@ 60 Hz) 60k Ohm(s)
Input pad0 / -30 dB
Number of outputs1
THRU outputs/channel1
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+ 4 dBu
Output impedance600 Ohm(s)
Frequency response20 - 20000
Transformer balancedYes
Ratio10 : 1
Controlsattenuator
Controlsground lift
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width110 mm
Depth73 mm
Height42 mm
Weight0,34 kg
Palmer
PAN01
