. Palmer Reversed DI box .

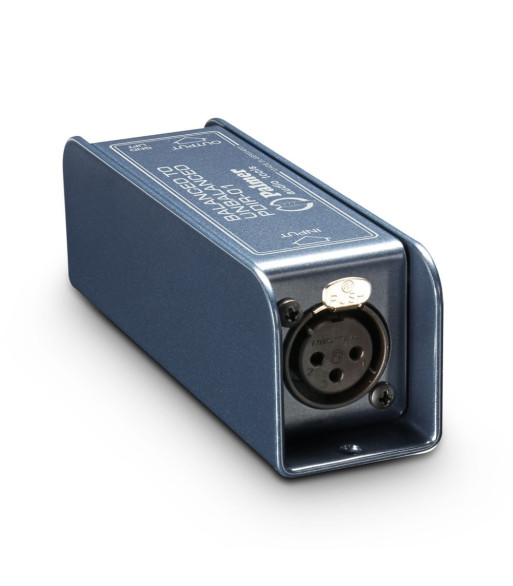

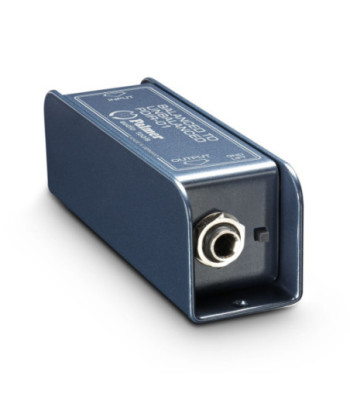

Palmer Reversed DI box
search
  • Palmer Reversed DI box
  • Palmer Reversed DI box

Palmer Reversed DI box

909,00 kr.
Inkl. moms
DI-REVERSE

People often try to connect a DI box in reverse, aiming to supply a balanced signal into an unbalanced input. Nevertheless, this approach often results in suboptimal outcomes due to mismatching. Enter the PDIR01 (DI-REVERSE), a solution designed to address this issue seamlessly, eliminating the need for adapters and ensuring optimal performance.

Antal
På fjernlager

Ref: PDIR01

Product typeDI boxes
Channels1
Inputs1
Input connectorsXLR
Max. input level+6 dBu
Input impedance2 k Ohm(s)
Number of outputs1
Output connectors6.3 mm jack
Max. output level+6 dBu
Output impedance2 k Ohm(s)
Frequency response20 - 20000
Transformer balancedYes
Ratio1:1
Controlsground lift
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width110 mm
Depth35 mm
Height39 mm
Weight0,17 kg
Palmer
PDIR01

Specifikke referencer

13 andre varer i den samme kategori:

Palmer Professional DI box active
search

Palmer Professional DI box...

PAN 02 PRO

The Palmer PAN02 PRO is an active DI box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The ground lift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 PRO can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.

Pris 2.359,00 kr.

På fjernlager

Palmer DI box active
search

Palmer DI box active

PAN 02

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Pris 769,00 kr.

På fjernlager

Palmer 19" DI box 4-channel passive
search

Palmer 19" DI box 4-channel...

PAN 03 PASS

Passive 4-channel DI box in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.

Pris 2.189,00 kr.

På fjernlager

LD Systems DI Box active
search

LD Systems DI Box active

LDI 02

Active DI box in a sturdy metal housing (aluminium/steel) with protective corners, silver-blue metallic, internal battery (9 V flashes during operation) is switched off automatically when phantom power is used (LED permanently illuminated),

extremely low battery consumption. Battery: 9 V block (not included).

Pris 489,00 kr.

På lager

Palmer Passive DI box
search

Palmer Passive DI box

RIVER wipper

If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI box which does not alter the natural sound or add any noise.

The Palmer wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.

The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

Pris 1.169,00 kr.

På fjernlager

Palmer Active 2-channel DI box
search

Palmer Active 2-channel DI box

PAN 04 A

The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk_s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.

Pris 1.729,00 kr.

På fjernlager

Palmer 19" DI box 8 channels passive
search

Palmer 19" DI box 8...

PAN 16

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.

Pris 3.179,00 kr.

På fjernlager

Palmer Passive re-amplification box
search

Palmer Passive...

RIVER trave

Reamping is a valuable recording technique used by many sound engineers.

It lets you experiment at leisure by running guitar, bass, keyboard, drum and even vocal tracks through amplifiers and effects pedals. As with many other techniques, you need the right tools.

The Palmer trave is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal into an unbalanced Hi-Z signal with perfectly matched impedance for your guitar amplifier or effect pedal. At the same time, the trave prevents ground loops, which are otherwise almost unavoidable when you combine an audio interface or mixer output with a guitar amp or effects pedal. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.

With the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.

Pris 979,00 kr.

På fjernlager

Palmer DI box 2-channel passive
search

Palmer DI box 2-channel...

PAN 04

The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This _stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell _THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

Pris 949,00 kr.

På fjernlager

Palmer Passive speaker simulation DI box
search

Palmer Passive speaker...

RIVER ilm

You've found your perfect amp sound, but somehow it sounds different on every stage?

The Palmer ilm speaker simulation DI box removes all the uncertainties of amp micing such as microphone choice, acoustic environment and positioning. With a sophisticated filter switch simulating the sound behaviour of a real guitar speaker, it captures your authentic sound, even without a microphone. Its direct signal always sounds the same, whether at home, in the (home) studio, during rehearsals, or on stage, whatever the room size.

The Palmer ilm offers three analog guitar speaker simulation settings, which represent typical guitar speaker models. We'll leave the flowery names to the others; on the Palmer ilm , they are called "normal", "mellow" and "bright".

Generally, the Palmer ilm is looped in between the guitar amp output and guitar speaker; but it can also be operated on the amplifier's line out. For input-level adjustment, the ilm has a pad switch with three settings: 0, -15 and -30 dB.

The output of the Palmer ilm is balanced and transformer isolated which means there is no interference or ground loop hum when connecting it to a mixing console or audio interface. With the Palmer ilm, you can always rely on what really matters: Your music, your instrument and your sound.

Pris 1.369,00 kr.

På fjernlager

Palmer DI box passive
search

Palmer DI box passive

PAN 01

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

Pris 569,00 kr.

På fjernlager

Palmer 19" DI box 4-channel active
search

Palmer 19" DI box 4-channel...

PAN 03

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.

Pris 3.499,00 kr.

På fjernlager

Palmer Passive 2-channel DI box
search

Palmer Passive 2-channel DI...

RIVER elde

Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That's exactly what the Palmer elde does - simply and reliably. Especially since the elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.

The inputs are each looped to a THRU Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.

The Palmer elde is a high-quality two-channel DI box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.

Pris 1.259,00 kr.

På fjernlager
