. Palmer 19" DI box 4-channel passive .

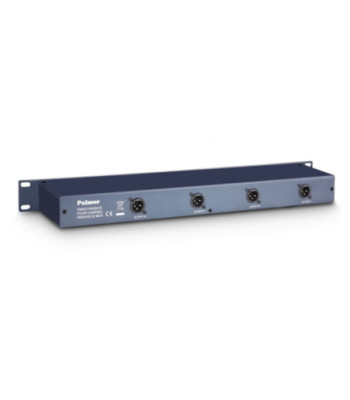

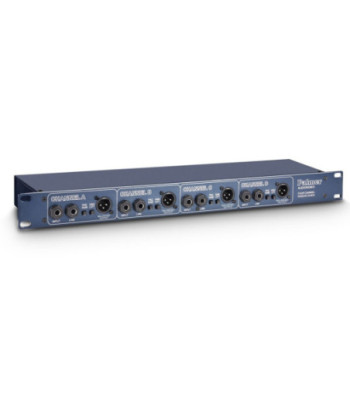

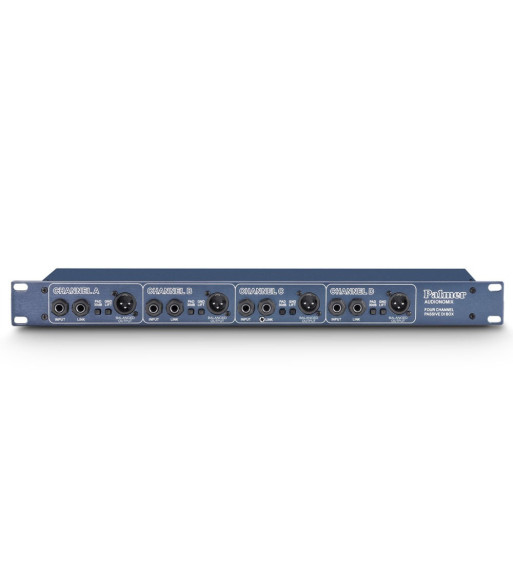

Palmer 19" DI box 4-channel passive
search
  • Palmer 19" DI box 4-channel passive
  • Palmer 19" DI box 4-channel passive
  • Palmer 19" DI box 4-channel passive

Palmer 19" DI box 4-channel passive

2.189,00 kr.
Inkl. moms
PAN 03 PASS

Passive 4-channel DI box in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.

Antal
På fjernlager

Ref: PAN03PASS

Product typeDI boxes
Typepassive
Channels4
Inputs4
Input connectors6.3 mm jack
Max. input level+ 54 dBu
Input impedance(@ 60 Hz) 68k Ohm(s)
Input pad0 / -30 dB
Number of outputs4 (+ 4 parallel outs)
THRU outputs/channel1
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+4 dBu
Output impedance600 Ohm(s)
Frequency response10 - 40000
Transformer balancedYes
Ratio10 : 1
Controlsattenuation
Controlsground lift
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm
Width19 "
Depth90 mm
Height45 mm
Height1 U
Weight1,43 kg
Palmer
PAN03PASS

Specifikke referencer
