. Palmer 19" DI box 8 channels passive .
Palmer 19" DI box 8 channels passive
search
  • Palmer 19" DI box 8 channels passive
  • Palmer 19" DI box 8 channels passive
  • Palmer 19" DI box 8 channels passive

Palmer 19" DI box 8 channels passive

3.179,00 kr.
Inkl. moms
PAN 16

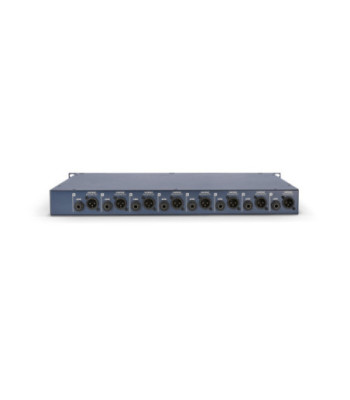

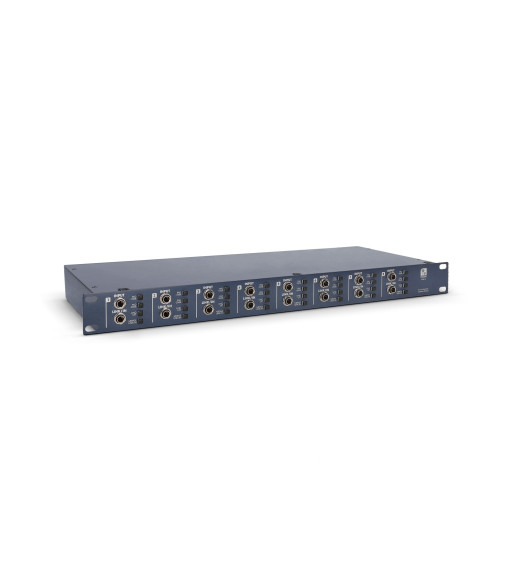

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.

Antal
På fjernlager

Ref: PAN16

  • 19_ passive DI box
  • 8 channels
  • Up to 16 inputs
  • Link Merge function
  • Flexible PAD: -10dB, -20dB, -30dB
  • Transformer balanced and isolated outputs

Product typeDI boxes
Typepassive
Channels8
Inputs8 / 16
Input connectors6.3 mm jack
Max. input level+ 54 dBu
Input impedance(@ 60 Hz) 1 M Ohm(s)
Input pad0 / -30 dB
Number of outputs4 (+ 4 Parallel Thru out)
THRU outputs/channel2
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+4 dBu
Output impedance600 Ohm(s)
Frequency response10 - 40000
Transformer balancedYes
Ratio10 : 1
Controlsground lift
Controlsmerge
ControlsPAD -10dB
ControlsPAD -20dB
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm
Width19 "
Depth200 mm
Height45 mm
Height1 U
Weight2,39 kg
Palmer
PAN16
