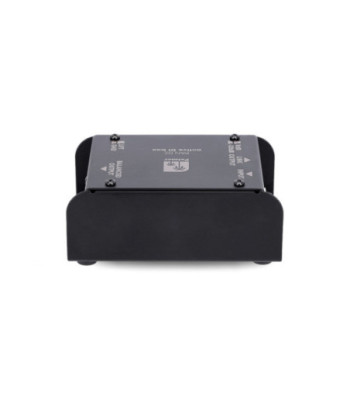

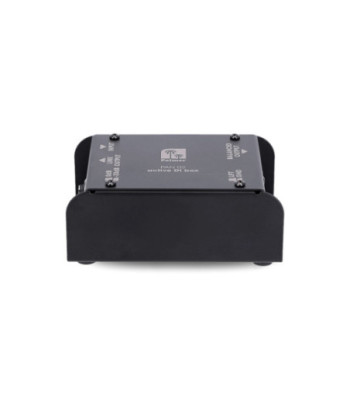

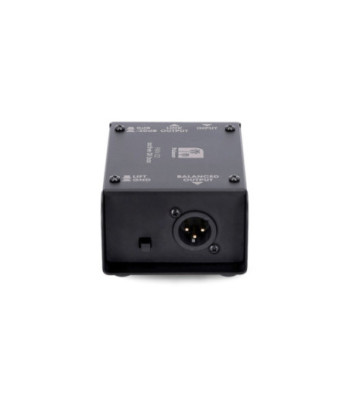

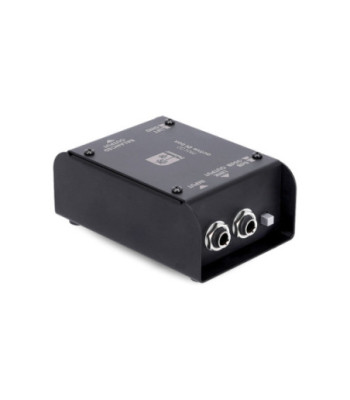

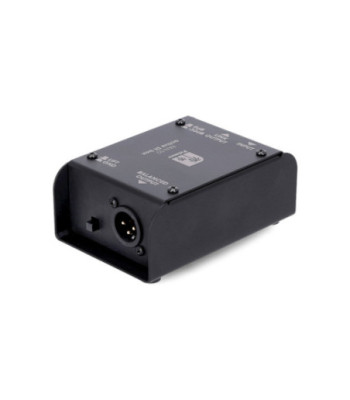

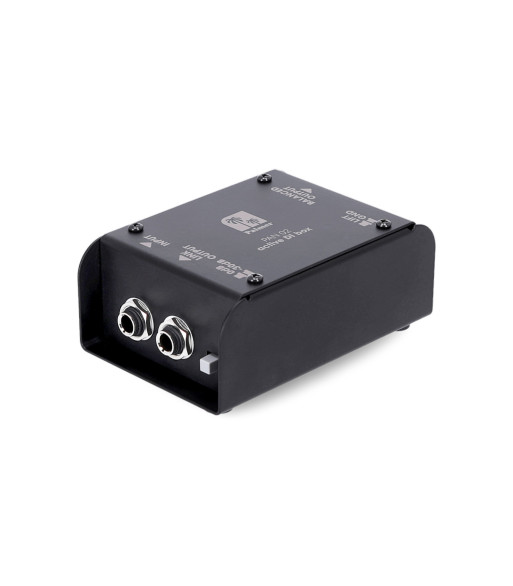

Palmer DI box active

769,00 kr.
Inkl. moms
PAN 02

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Antal
På fjernlager

Ref: PAN02

Product typeDI boxes
Typeactive
Channels1
Inputs1
Input connectors6.3 mm jack
Max. input level+ 45 dBu
Input impedance(@ 60 Hz) 1 M Ohm(s)
Input pad0 / -30 dB
Number of outputs1
THRU outputs/channel1
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+ 10 dBu
Output impedance600 Ohm(s)
Frequency response10 - 20000
Transformer balancedYes
Ratio1 : 1
Controlsattenuator
Controlsground lift
Power supply+48 V phantom power
Power supply9 V block
Power consumption3.8 mA (9V)
Power consumption4 mA (48V)
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width110 mm
Depth73 mm
Height42 mm
Weight0,353 kg
Palmer
PAN02
