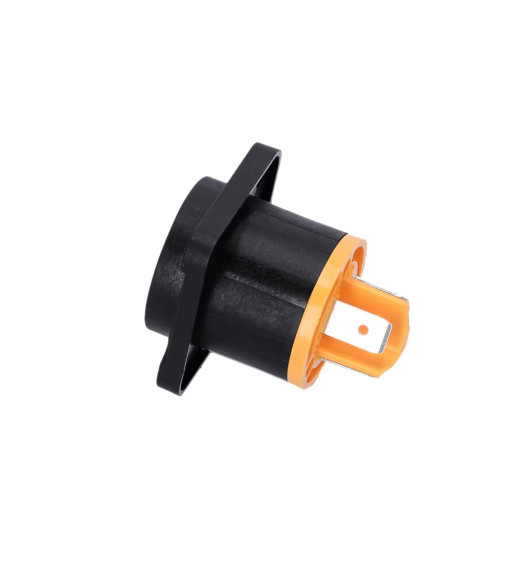

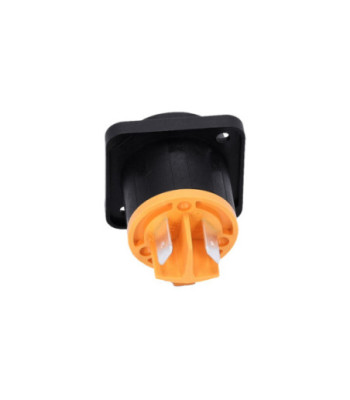

Mains plug device chassis connector female - IP65

59,00 kr.
Inkl. moms
4 STAR P PF T CON

The 3-pole mains socket replaces cold appliance plugs where a very robust locking solution is needed. Compatible with all common powerCON TRUE1-TOP plugs, our 4 STAR built-in socket is a robust and good choice for powering devices with locking power connection. Load capacity up to 16 A / 250 V AC. IP65 protected when mated.With UL recognised components.

Antal
På fjernlager

Ref: K4PPFTCON

  • Mains connector with neutral conductor from our 4 Star Series
  • Current carrying capacity up to 16 A / 250V AC
  • Dust and splash-proof when plugged in (IP65)
  • Quick and easy locking
  • Compatible with all common powerCON TRUE1-TOP sockets

Product typePlugs and Connectors
TypePower Connectors
Poles3
Genderfemale
Cable diameter8 - 11 mm
ContactsBronze
Connection typeScrew terminals
Housingpolyamide
Strain reliefpolyacetal
Width26 mm
Height31 mm
Depth40.7 mm
Weight0,027 kg
Adam Hall Connectors
K4PPFTCON

Specifikke referencer
