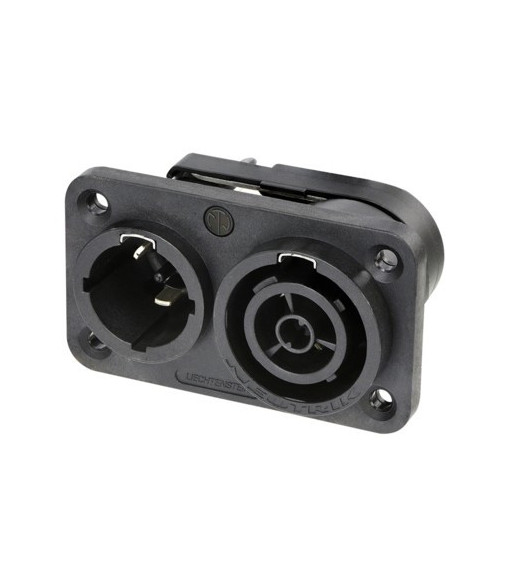

Neutrik Neutrik powerCON TRUE1-TOP® combi chassis connector - IP65

139,00 kr.
Inkl. moms
NAC3PX-TOP

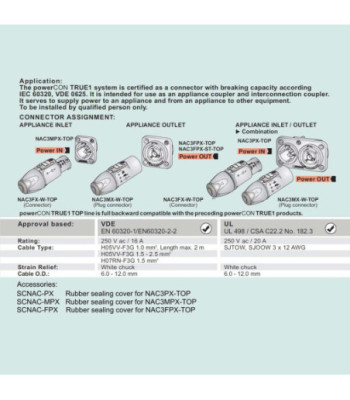

The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Antal
På fjernlager

Ref: NAC3PX-TOP

  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • UL recognized components
  • IP65 ingress protection in mated condition and unmated in combination with SCNAC-PX

Product typePlugs and Connectors
TypePowercon
Genderfemale
Gendermale
ColorBlack
ContactsCopper, alloyed
Resistance3 m Ohm(s)
insulating resistance> 0.1 G
Rated Voltage250 V
Rated current per contact16 A
Number of electronical contacts2 + PE
Housingpolyamide
Wiresize2.5 mm²
Wiresize (AWG)12 AWG
Width61 mm
Height35.4 mm
Depth29.8 mm
Fire protection classUL94 V-0
Temperature range- 30 °C / + 80 °C °C
Weight0,034 kg
NEUTRIK
NAC3PX-TOP

Specifikke referencer
