. Neutrik Neutrik powerCON TRUE1-TOP® male - IP65 .
Neutrik Neutrik powerCON TRUE1-TOP® male | IP65
search
  • Neutrik Neutrik powerCON TRUE1-TOP® male | IP65
  • Neutrik Neutrik powerCON TRUE1-TOP® male | IP65

Neutrik Neutrik powerCON TRUE1-TOP® male - IP65

109,00 kr.
Inkl. moms
NAC3MX-W-TOP

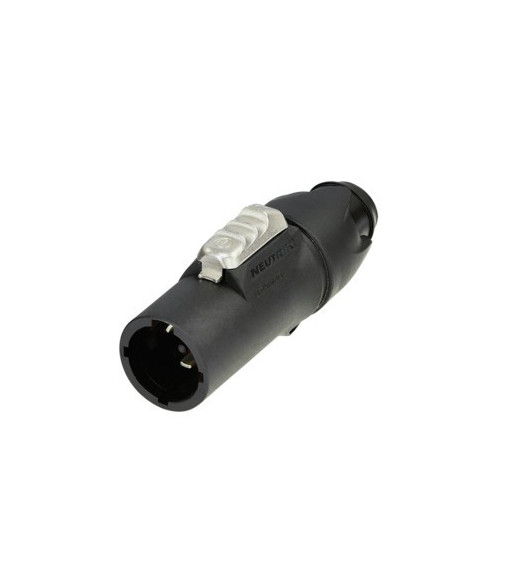

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Antal
På fjernlager

Ref: NAC3MX-W-TOP

  • Heavy duty sealed power connector for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Product typePlugs and Connectors
TypePowercon
Gendermale
ColorBlack
ContactsCopper-Nickel
Resistance3 m Ohm(s)
insulating resistance0.1 G
Rated Voltage250 V
Rated current per contact16 A
Number of electronical contacts2 + PE
Housingpolyamide
Cable O.D.6 - 12 mm
Wiresize1 - 2,5 mm²
Wiresize (AWG)12 AWG
Height35 mm
Length77 - 80 mm
Diameter26.5 mm
Fire protection classUL94 V-0
Protection class IPIP65
Temperature range- 30 °C / + 80 °C °C
Weight0,031 kg
NEUTRIK
NAC3MX-W-TOP
