. Mains plug device male - IP65 .
Mains plug device male | IP65
search
  • Mains plug device male | IP65

Mains plug device male - IP65

99,00 kr.
Inkl. moms

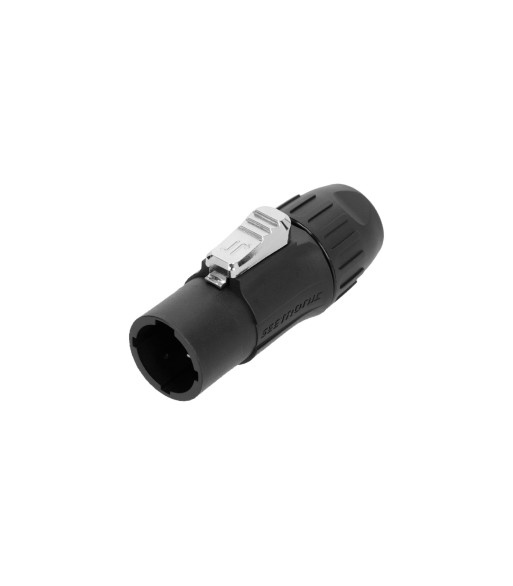

4 STAR C PM TCON

The 3-pole power connector replaces IEC connectors where a very robust locking solution is needed. Compatible with all common powerCON TRUE1-TOP sockets, our 4 STAR C PM TCON is a robust and good choice for powering equipment with locking power connection. Load capacity up to 16 A / 250 V AC. IP65 protected when mated.With UL recognised components.

Antal
På fjernlager

Ref: K4CPMTCON

  • High-quality mains plug from our 4 Star series
  • Current carrying capacity up to 16 A / 250 V AC
  • Dust and splash-proof when plugged in (IP65)
  • Quick and easy locking
  • Compatible with all common powerCON TRUE1-TOP sockets

Product typePlugs and Connectors
TypePower Connectors
Poles3
Gendermale
Cable diameter8 - 11 mm
ContactsBronze
Current carrying capacity16 A / 250 V AC
Protection classIP65 / dust and splash water protected when plugged in
Connection typeScrew terminals
Colororange / black
Housingpolyamide
Strain reliefpolyacetal
Length78 mm
Diameter35 mm
Weight0,039 kg
Adam Hall Connectors
K4CPMTCON

Specifikke referencer
