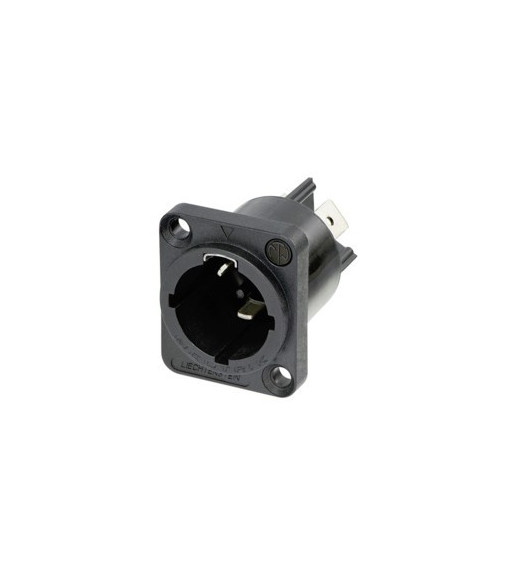

. Neutrik Neutrik powerCON TRUE1-TOP® chassis connector male - IP65 .
Neutrik Neutrik powerCON TRUE1-TOP® chassis connector male | IP65
search
  • Neutrik Neutrik powerCON TRUE1-TOP® chassis connector male | IP65
  • Neutrik Neutrik powerCON TRUE1-TOP® chassis connector male | IP65

Neutrik Neutrik powerCON TRUE1-TOP® chassis connector male - IP65

59,00 kr.
Inkl. moms
NAC3MPX-TOP

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Antal
På fjernlager

Ref: NAC3MPX-TOP

  • Heavy duty sealed power connector for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Product typePlugs and Connectors
TypePowercon
Gendermale
ColorBlack
ContactsCopper, alloyed
Resistance3 m Ohm(s)
insulating resistance> 0.1 G
Rated Voltage250 V
Rated current per contact16 A
Number of electronical contacts2 + PE
Housingpolyamide
Width26 mm
Height31 mm
Depth31.2 mm
Diameter23.8 mm
Fire protection classUL94 V-0
Protection class IPIP65
Temperature range- 30 °C / + 80 °C °C
Weight0,01 kg
NEUTRIK
NAC3MPX-TOP
