. Neutrik Neutrik powerCON TRUE1-TOP® male - IP65 large .
Neutrik Neutrik powerCON TRUE1-TOP® male | IP65 large
search
  • Neutrik Neutrik powerCON TRUE1-TOP® male | IP65 large

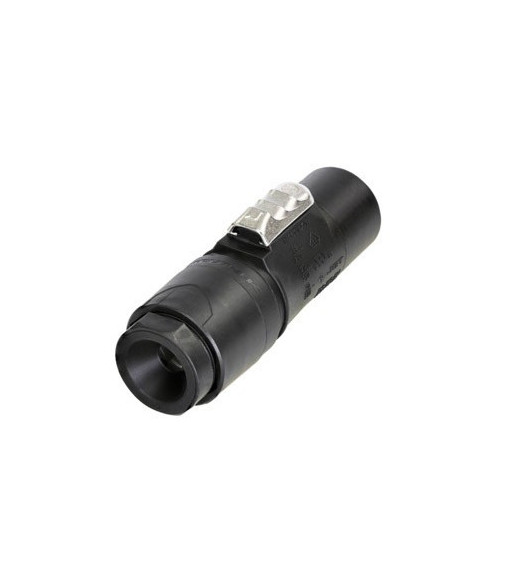

Neutrik Neutrik powerCON TRUE1-TOP® male - IP65 large

109,00 kr.
Inkl. moms

NAC3MX-W-TOP-L

NEW: Lockable cable plug for thick mains cables with diameters of 10-16 mm. Certified according to EN/UL 60320-1 for use with cable types H07RN-F3G2.5 and SOOW 12/3 (USA). Protection class IP65 and current carrying capacity up to 16 A.#b/#

The powerCON TRUE1 TOP series is a plug-in device for outdoor applications and may be plugged in and unplugged under load and voltage.

Antal
På fjernlager

Ref: NAC3MX-W-TOP-L

  • Cable outer diameter 10 to 16 mm
  • Specially sealed mains connector for high stress in rough environment
  • Single-phase, pluggable under load (20 A 250 VAC)
  • Superior NEUTRIK quality standard
  • Standard-compliant IEC EN 60320-1 and UL 60320-1; i.e. approved component for cable sets IEC 60799 and devices according to IEC 62368-1
  • TOP True Outdoor Protection
  • Extremely robust and reliable strain relief

Product type Plugs and Connectors
Type Powercon
Gender male
Contacts silver plated
insulating resistance > 0.1 G
Rated Voltage 250 V
Rated current per contact 16 A
Number of electronical contacts 2 + PE
Housing polyamide
Cable diameter 10 - 16 mm
Wiresize (AWG) 12 AWG
Diameter 26 mm
Fire protection class UL 94 V-0
Protection class IP IP65
Temperature range -30 - 80 °C
Weight 0,031 kg
NEUTRIK
NAC3MX-W-TOP-L
