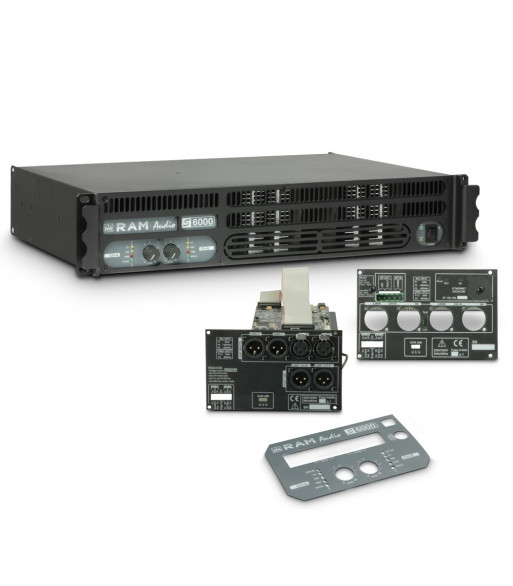

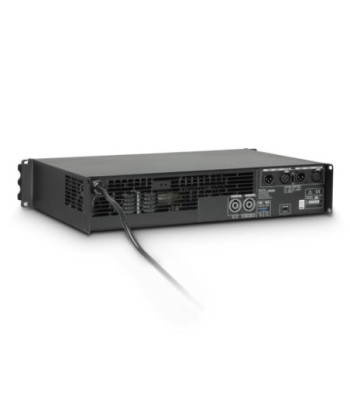

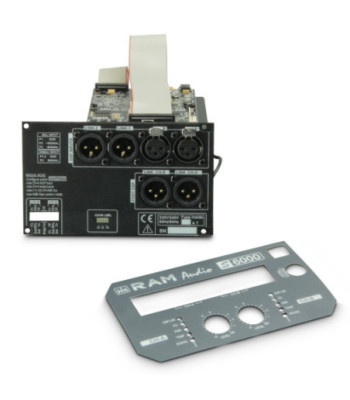

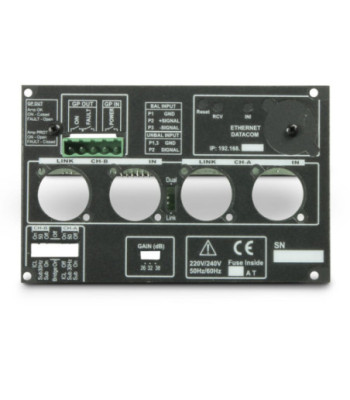

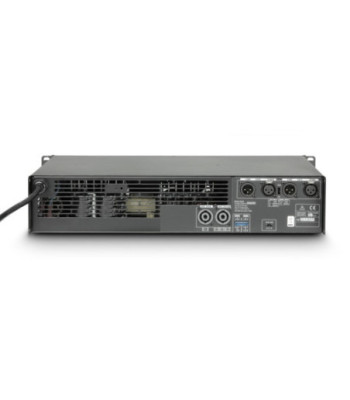

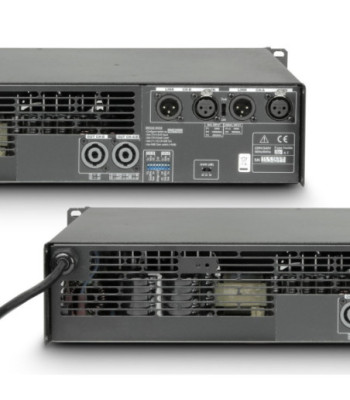

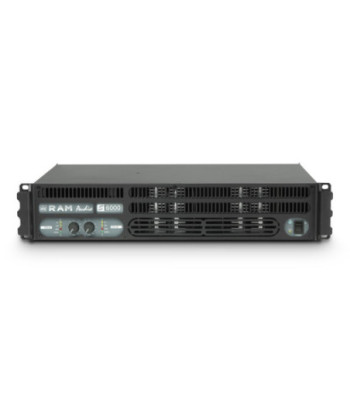

Ram Audio PA Power Amplifier 2 x 2950 W 2 Ohms incl. DSP and GPIO Module

34.529,00 kr.
Inkl. moms
S 6000 DSP GPIOCompact 2 and 4-channel Power Amplifiers with state-of-the-art QuantaPulse EVO SMPS

The state-of-the-art QuantaPulse EVO switched-mode power supply of the new S Series amplifiers provides major benefits: it increases efficiency and reliability, generates less heat and keeps the weight down. While delivering high output power S series amplifiers tip the scales at around 8 kg only.

S Series power amplifiers are available with 2 and 4 channels and output ratings from 1.5 to 6 kW. Housed in 30 cm deep, 2U rackmountable chassis the S series uses surface-mount technology with high component density for maximum reliability.

Main Features
  • QuantaPulse_ EVO switched-mode power supply for maximum efficiency, increased output and reliability
  • five 2-channel models with up to 4 kW output power
  • very light weight (8 kg), 2U and 30 cm depth
  • electronic protection circuits
  • high component density surface-mount technology (SMT) provides mechanical strength and reliable operation
  • Neutrik XLR and Speakon connectors

QuantaPulse_ Technology: The Soft Switching Resonant QuantaPulse Power Supply is designed to provide plenty of power when needed monitoring the necessary parameters of voltage and current for a controlled performance at all times. Bi-directional data flow between the power supply and power amp module. Two very important characteristics of the QuantaPulse power supply are the optimization against over-voltages and superior reliability.

Antal
På fjernlager

Ref: RAMS6000DSPGPIO

Product typePower Amplifier Accessories
Product typePower Amplifier Accessories
Product typePower Amplifiers
TypePA Power Amplifiers
Weight9,4 kg
Product typePower Amplifiers
TypePA Power Amplifiers
ConnectorTerminal block
Version2-channel
AD/DA converter24 bit
Rated ouput power (1kHz @ 2 Ohms)2 x 2950 W
Weight0,3 kg
Rated ouput power (1kHz @ 4 Ohms)2 x 2025 W
Sampling frequency192 (256x Oversampling) kHz
Rated ouput power (1kHz @ 8 Ohms)2 x 1250 W
Filter typeBessel
Filter typeButterworth
Filter typeLinkwitz-Riley
Rated ouput power (1 kHz @ 4 Ohms, bridged)5900 W
Filter slew rateup to 48 dB/oct
Rated ouput power (1kHz @ 8 Ohms, bridged)4050 W
High Z 100Vrms / 140Vpeak2 x 2800
Output circuitryClass H
Output EQ9 filters per channel (parametric, shelving, LP, HP, BP, SB)
Frequency response20 - 20000
Total Harmonic Distortion (THD)< 0.05 %
Output Delayup to 7.1 m (20.69 ms) per channel
Limiter (per channel)Peak Voltage Output
Limiter (per channel)RMS Power
Signal-to-noise ratio118 dB
Damping factor (20Hz-500Hz @8ohm)> 500
Additionakl DSP functions (per channel)Gain
Additionakl DSP functions (per channel)mute
Additionakl DSP functions (per channel)Phase Inversion
Line inputs2
Crosstalk> 75 dB
Gain26 / 32 / 38 dB
Line input connectorsXLR (balanced)
Line outputs2
Input sensitivity5.0 / 2.5 / 1.3 V
Input impedance(balanced) 20 k Ohm(s)
Input impedance(unbalanced) 10 k Ohm(s)
Line output connectorsXLR (balanced)
Programmingvia USB port
Protection circuitsDC voltage
Protection circuitshigh frequency
Protection circuitsmismatching
Protection circuitson/off transients
Protection circuitsopen outputs
Protection circuitspower on muting
Protection circuitsShort circuit
Protection circuitsSoft start
Protection circuitsthermal overload
Controls2 x volume
Controlsdual/bridge switch
ControlsPower
IndicatorsClipping
Indicatorsfault
Indicatorsready
Indicatorssignal
Indicatorstemperature
Weight0,5 kg
Line inputs2
Line input connectorsXLR
Line outputs2
Line output connectorsXLR
Loudspeaker outputs2
Speaker output connectionsSpeakon
Coolingfan
Power supply230 V
Power consumption @ full load10 A
Width483 mm
Height89 mm
Depth310 mm
Weight8,6 kg
Ram Audio
RAMS6000DSPGPIO
