LD Systems PA Power Amplifier 2 x 1200 W 2 ohm
search
  • LD Systems PA Power Amplifier 2 x 1200 W 2 ohm
  • LD Systems PA Power Amplifier 2 x 1200 W 2 ohm
  • LD Systems PA Power Amplifier 2 x 1200 W 2 ohm

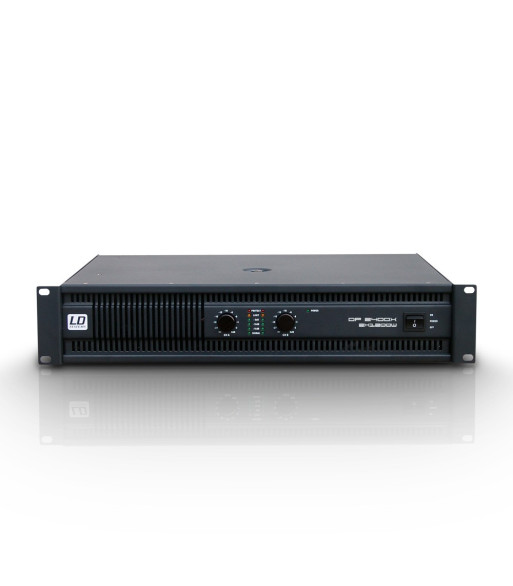

LD Systems PA Power Amplifier 2 x 1200 W 2 ohm

6.429,00 kr.
Inkl. moms
DEEP2 2400 XThe DP2400X is the newest member of the DEEP2 family of power amplifiers.

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.

Antal
På fjernlager

Ref: LDDP2400X

Product typePower Amplifiers
TypePA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms)2 x 1200 W
Rated ouput power (1kHz @ 4 Ohms)2 x 950 W
Rated ouput power (1kHz @ 8 Ohms)2 x 600 W
Rated ouput power (1 kHz @ 4 Ohms, bridged)2200 W
Rated ouput power (1kHz @ 8 Ohms, bridged)1800 W
Output circuitryClass H
Frequency response20 - 20000
Total Harmonic Distortion (THD)< 0.1 %
Signal-to-noise ratio106 dB
Damping factor (20Hz-500Hz @8ohm)> 450
Crosstalk>76 dB
Gain39 dB
Input sensitivity0.775 V
Protection circuitsclip limiter
Protection circuitsDC protection
Protection circuitsShort circuit
Protection circuitsthermal overload
Controls2 x highpass/lowpass (switchable)
Controls2 x volume
Controlsbridge/stereo mode selector
Controlsground lift
Controlsmains switch (on/off)
Indicatorslevel
IndicatorsLimit
IndicatorsPower
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal

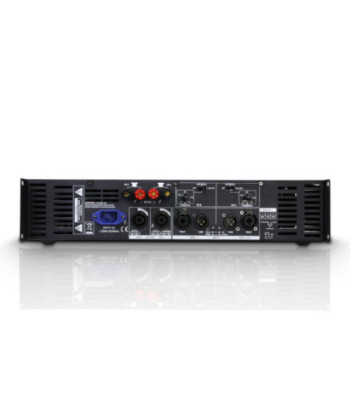

Loudspeaker outputs2
Speaker output connectionsSpeakon compatible
Speaker output connectionsTerminal posts
Coolinghighly efficient, automatic
Power supplytransformer
Operating voltage230 V AC / 50-60 Hz
Weight17,6 kg
FeaturesVolex mains socket
LD Systems
LDDP2400X
