. LD Systems PA Power Amplifier 4 x 810 W 4 Ohms .

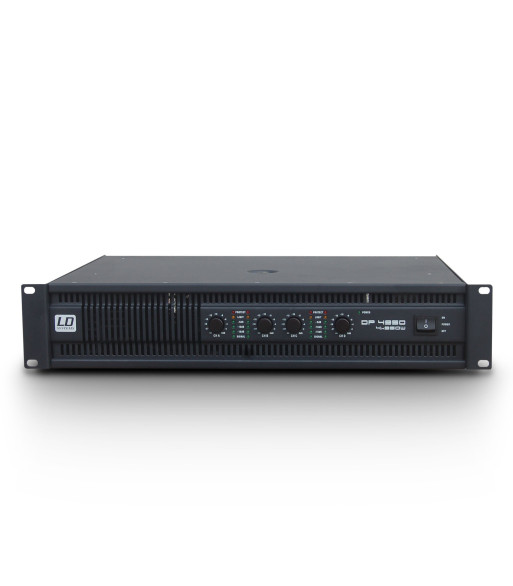

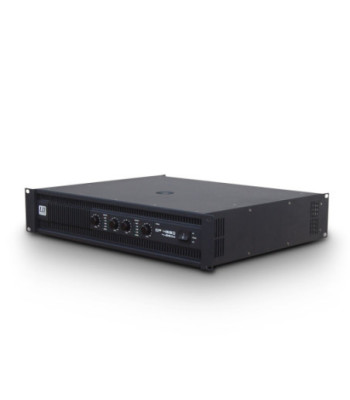

LD Systems PA Power Amplifier 4 x 810 W 4 Ohms
search
  • LD Systems PA Power Amplifier 4 x 810 W 4 Ohms
  • LD Systems PA Power Amplifier 4 x 810 W 4 Ohms
  • LD Systems PA Power Amplifier 4 x 810 W 4 Ohms
  • LD Systems PA Power Amplifier 4 x 810 W 4 Ohms

LD Systems PA Power Amplifier 4 x 810 W 4 Ohms

6.519,00 kr.
Inkl. moms
DEEP2 4950

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

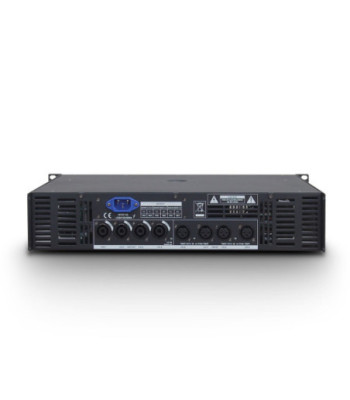

The DEEP2 series features a Clip Limiter as well as every common protection circuit. On the rear panel you will find all the common In- and Outputs.

The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.

The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.

Antal
På fjernlager

Ref: LDDP4950

Product typePower Amplifiers
TypePA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms)4 x 810 W
Rated ouput power (1kHz @ 8 Ohms)4 x 490 W
Rated ouput power (1kHz @ 8 Ohms, bridged)2 x 1600 W
Output circuitryClass H
Frequency response20 - 20000
Total Harmonic Distortion (THD)< 0.1 %
Signal-to-noise ratio105 dB
Damping factor (20Hz-500Hz @8ohm)>400
Crosstalk>70 dB
Gain38 dB
Input sensitivity0.775 V
Protection circuitsDC protection
Protection circuitsShort circuit
Protection circuitsthermal overload
Controls4 x volume
Controlsbridge/stereo mode selector
Controlsground lift
Controlsmains switch (on/off)
IndicatorsLimit
IndicatorsPower
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Loudspeaker outputs4
Speaker output connectionsSpeakon compatible
Coolinghighly efficient, automatic
Power supplytransformer
Operating voltage230 V AC / 50-60 Hz
Weight19,6 kg
LD Systems
LDDP4950

Specifikke referencer

7 andre varer i den samme kategori:

LD Systems PA Power Amplifier Class D 2 x 350 W 4 Ohms
  • På tilbud!
  • -200,00 kr.
search

LD Systems PA Power...

XS 700LD Systems XS700 Power Amplifier

The XS700 is the flagship of the XS series of power amplifiers and an absolute flyweight with just 1U and 3.4kg. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The power amp has an output of 350W per channel at 4 ohms, 2x 200W at 8 ohms, and 700W in bridged mode. It is conceived for all professional applications in which ease of transport and space is essential, whether mobile or in permanent installations.

The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.

The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz _ 20kHz, which is reproduced transparently and dynamically with high impulse fidelity.

Pris 3.059,00 kr. Normalpris 3.259,00 kr.

På fjernlager

LD Systems PA Power Amplifier 2 x 1200 W 2 ohm
search

LD Systems PA Power...

DEEP2 2400 XThe DP2400X is the newest member of the DEEP2 family of power amplifiers.

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.

Pris 6.429,00 kr.

På fjernlager

Ram Audio PA Power Amplifier 2 x 2950 W 2 Ohms incl. DSP and GPIO Module
search

Ram Audio PA Power...

S 6000 DSP GPIOCompact 2 and 4-channel Power Amplifiers with state-of-the-art QuantaPulse EVO SMPS

The state-of-the-art QuantaPulse EVO switched-mode power supply of the new S Series amplifiers provides major benefits: it increases efficiency and reliability, generates less heat and keeps the weight down. While delivering high output power S series amplifiers tip the scales at around 8 kg only.

S Series power amplifiers are available with 2 and 4 channels and output ratings from 1.5 to 6 kW. Housed in 30 cm deep, 2U rackmountable chassis the S series uses surface-mount technology with high component density for maximum reliability.

Main Features
  • QuantaPulse_ EVO switched-mode power supply for maximum efficiency, increased output and reliability
  • five 2-channel models with up to 4 kW output power
  • very light weight (8 kg), 2U and 30 cm depth
  • electronic protection circuits
  • high component density surface-mount technology (SMT) provides mechanical strength and reliable operation
  • Neutrik XLR and Speakon connectors

QuantaPulse_ Technology: The Soft Switching Resonant QuantaPulse Power Supply is designed to provide plenty of power when needed monitoring the necessary parameters of voltage and current for a controlled performance at all times. Bi-directional data flow between the power supply and power amp module. Two very important characteristics of the QuantaPulse power supply are the optimization against over-voltages and superior reliability.

Pris 34.529,00 kr.

På fjernlager

LD Systems PA Power Amplifier Class D 2 x 100 W 4 Ohms
  • På tilbud!
  • -250,00 kr.
search

LD Systems PA Power...

XS 200LD Systems XS200 Power Amplifier

The XS200 is an extremely compact, dependable Class D power amplifier with an output of 100W per channel at 4 ohms and a transmission range of 20Hz _ 20kHz. With just 1U and a weight of 3kg, it is conceived for all professional applications in which ease of transport or space is important, whether mobile, in installations or at home, since no fan is required.

The XS200 is protected against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. Slide switches on the rear panel let you select the mode of operation and gain and activate the limiter and the ground-lift function for eliminating ground loop hum. LEDs indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS200 impresses with its high dynamics, impulse fidelity, and transparent sound.

Pris 2.419,00 kr. Normalpris 2.669,00 kr.

På lager

LD Systems PA Power Amplifier 2 x 300 W 2 Ohms
search

LD Systems PA Power...

DEEP2 600

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

The DEEP2 series features a Clip Limiter as well as every common protection circuits. These amps are 2 Ohm and 4 Ohm (bridge) stable in continuous operation. On the rear panel you will find all the common In- and Outputs.

The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.

The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.

Pris 3.729,00 kr.

På lager

LD Systems PA Power Amplifier Class D 2 x 200 W 4 Ohms
  • På tilbud!
  • -150,00 kr.
search

LD Systems PA Power...

XS 400LD Systems XS400 Power Amplifier

The XS400 is an extremely compact, dependable Class D power amplifier with an output of 200W per channel at 4 ohms 400W in 8-ohm bridged mode, and a wide transmission range of 20Hz _ 20kHz. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The XS400, at 1U and a weight of 3.4kg, is conceived for all professional applications in which ease of transport or space is important, whether mobile or in permanent installations.

The XS400 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The transparent sound of the XS400 stands out with high dynamics and impulse fidelity.

Pris 2.829,00 kr. Normalpris 2.979,00 kr.

På fjernlager

LD Systems PA Power Amplifier 2 x 800 W 2 Ohms
search

LD Systems PA Power...

DEEP2 1600

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

The DEEP2 series features a Clip Limiter as well as every common protection circuits. These amps are 2 Ohm and 4 Ohm (bridge) stable in continuous operation. On the rear panel you will find all the common In- and Outputs.

The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.

The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.

Pris 4.939,00 kr.

På lager
