LD Systems PA Power Amplifier Class D 2 x 200 W 4 Ohms

2.979,00 kr.
2.829,00 kr. Spar 150,00 kr.
Inkl. moms

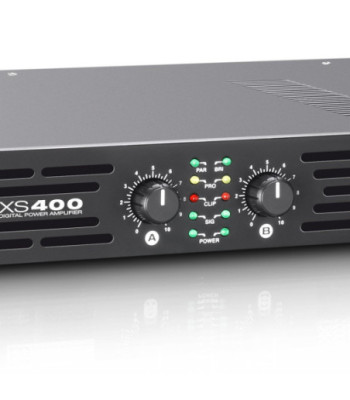

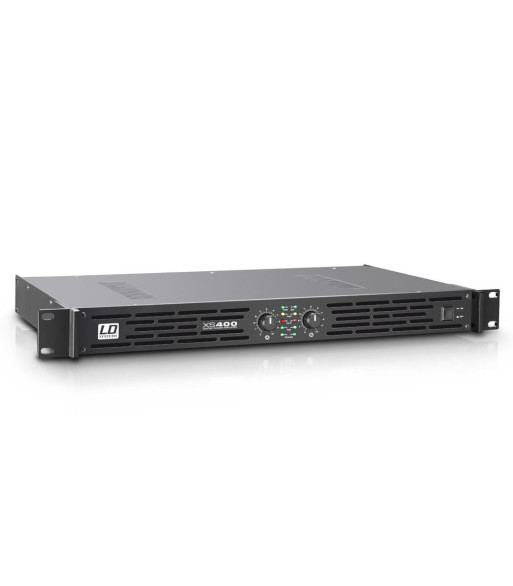

XS 400LD Systems XS400 Power Amplifier

The XS400 is an extremely compact, dependable Class D power amplifier with an output of 200W per channel at 4 ohms 400W in 8-ohm bridged mode, and a wide transmission range of 20Hz _ 20kHz. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The XS400, at 1U and a weight of 3.4kg, is conceived for all professional applications in which ease of transport or space is important, whether mobile or in permanent installations.

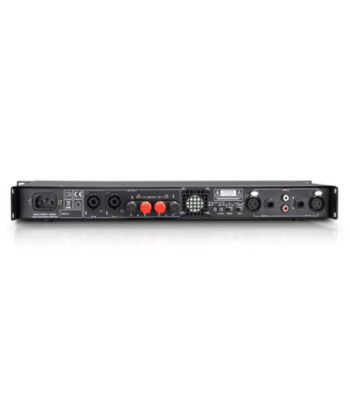

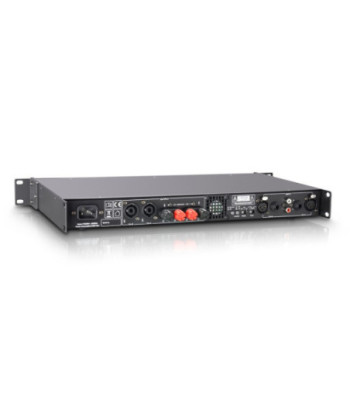

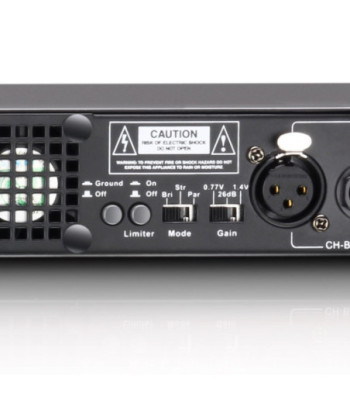

The XS400 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The transparent sound of the XS400 stands out with high dynamics and impulse fidelity.

Antal
På fjernlager

Ref: LDXS400

Product type Power Amplifiers
Type PA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms) 2 x 200 W
Rated ouput power (1kHz @ 8 Ohms) 2 x 100 W
Rated ouput power (1kHz @ 8 Ohms, bridged) 400 W
Output circuitry Class D
Frequency response 20 - 20000
Total Harmonic Distortion (THD) < 0.1 %
Gain 32 dB / 26 dB / 28 dB dB
Input sensitivity 0.68 V / 1.4 V / 1.2 V (not passed) V
Protection circuits DC
Protection circuits over-current
Protection circuits Short circuit
Protection circuits soft start
Protection circuits thermal overload
Controls Gain
Controls ground lift
Controls limiter
Controls Mode
Controls On / Off
Controls volume
Indicators clip
Indicators Mode
Indicators Power
Indicators Protect (protection circuit engaged)
Indicators Signal
Line inputs 2
Line input connectors 6.3 mm jack
Line input connectors RCA
Loudspeaker outputs 2
Speaker output connections Speakon compatible
Speaker output connections Terminal posts
Cooling low-noise fan
Power supply Switching power supply
Power consumption @ full load 470 W
Operating voltage 115 V AC / 230 V AC (switchable)
Width 482 mm
Height 44 mm
Depth 244 mm
Weight 3,4 kg
LD Systems
LDXS400
