. CC Pro Shop 3´´ fuldtonehøjttaler - SPX-32M MONACOR .
3´´ fuldtonehøjttaler - SPX-32M MONACOR
search
  • 3´´ fuldtonehøjttaler - SPX-32M MONACOR
  • 3´´ fuldtonehøjttaler - SPX-32M MONACOR

MONACOR 3´´ fuldtonehøjttaler - SPX-32M

224,00 kr.
Inkl. moms

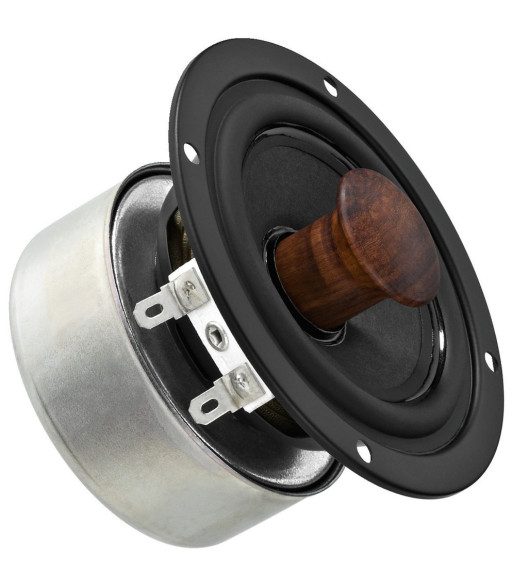

Hi-fi full range speaker, 20 W, 8 _
  • Excellent sound quality
  • High-quality paper cone
  • Wooden phase plug for optimising radiation pattern
  • Rear-ventilated centering spider
  • Magnet system with shielding
  • Application in small speakers or satellite systems
  • Ideally suited for application in FAST speakers (full range and subwoofer technology)
HOBBY HiFi 03/2012
"Audiophile characteristics due to paper cone and solid wooden phase plug."
Antal
På fjernlager

Ref: SPX-32M

Impedance (Z) 8 _
Line technique -
Frequency range f3-22,000 Hz
Resonant frequency (fs) 110 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 20 W
Peak music power output 40 W
Sensitivity 88 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 1.11 mm/N
Moving mass (Mms) 1.7 g
Mech. Q factor (Qms) 7.66
Electr. Q factor (Qes) 0.60
Total Q factor (Qts) 0.56
Equivalent volume (Vas) 1.6 l
DC resistance (Re) 6.6 _
Force factor (BxL) 3.69 Tm
Voice coil induct. (Le) 0.18 mH
Voice coil diameter Ø 20 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 1.1 mm
Eff. cone area (Sd) 32 cm2
Magnet weight 99 g
Magnet diameter Ø 68 mm
Mounting cutout Ø 71 mm
Mounting depth 52.5 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 93 mm x 55 mm
Outside diameter Ø 93 mm
Width Ø 93 mm
Height -
Depth 55 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.498 kg
Sales unit 1
Type of speaker 3"
SPX-32M
