. MONACOR PA-forstærker 10 zoner - PA-6010Z .

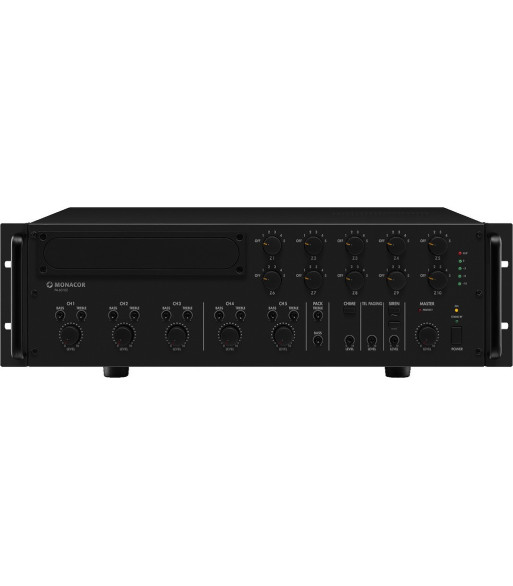

MONACOR PA-forstærker 10 zoner - PA-6010Z
search
  • MONACOR PA-forstærker 10 zoner - PA-6010Z
  • MONACOR PA-forstærker 10 zoner - PA-6010Z

MONACOR PA-forstærker 10 zoner - PA-6010Z

11.439,00 kr.
Inkl. moms

10-zone mono PA mixing amplifier

  • 1 x 600 W
  • 10 zones, can be controlled individually
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs stereo line via RCA jacks
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
  • Insertions for various functions are available at option
  • 15 V phantom power for electret microphones
  • Connection for up to 3 zone paging microphones PA-2400RC
  • Connection for up to 3 push-to-talk microphones PA-4300PTT
  • Alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets

Antal
På fjernlager

Ref: PA-6010Z

Peak output power -
Power rating 600 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 16 _ -
Power rating at 100 V 600 W
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance -
Channels 5
Zones 10
Inputs 2.5 mV/5 k_, 0.3 V/5 k_ (mic/line 1-3),

0.3 V/15 k_ (line 4-5),

0.775 V/100 k_ (preamplifier)
Attenuation factor -
Frequency range 55-16,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ±10 dB/100 Hz
Equalizer midrange -
Equalizer treble ±10 dB/10 kHz
S/N ratio > 70 dB (mic),

> 80 dB (line)
Crosstalk attenuation -
THD < 1%
Phantom power 15 V
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,700 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 50 A
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 352 mm
Rack spaces, RS 3
Weight 22 kg

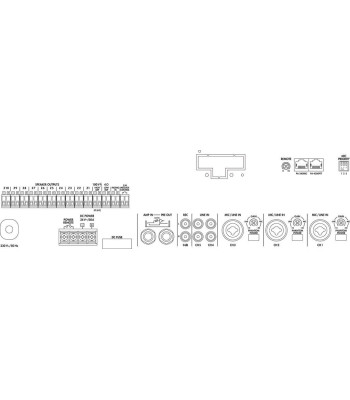

Connections 3 x comb. 6.3 mm/XLR (mic/line),

2 x RCA L/R (line),

1 x 6.3 mm jack (preamplifier input),

1 x RJ45 (push-to-talk mic),

1 x RJ45 (zone paging mic),

screw terminals (speakers),

1 x RCA L/R (record output)

1 x 6.3 mm jack (preampl
PA-6010Z
