. MONACOR 100V højttaler 10Wmax - EDL-18 .
MONACOR 100V højttaler 10Wmax - EDL-18
search
  • MONACOR 100V højttaler 10Wmax - EDL-18
  • MONACOR 100V højttaler 10Wmax - EDL-18

MONACOR 100V højttaler 10Wmax - EDL-18

429,00 kr.
Inkl. moms

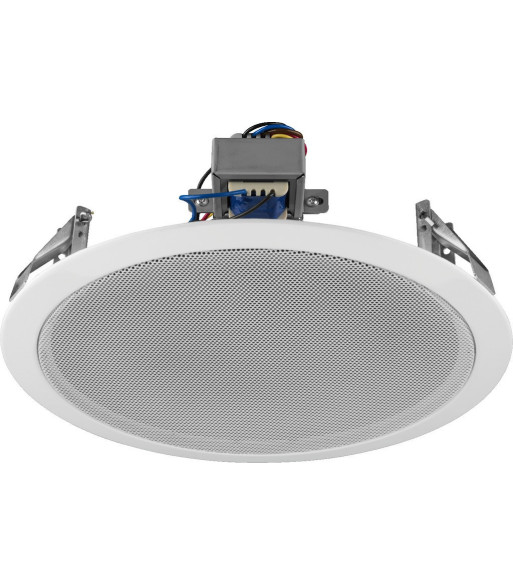

PA ceiling speaker

  • 100 V line technique
  • 20 cm (8") full range speaker
  • Metal housing with protective speaker grille
  • Power taps: 10/6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm


PA Ceiling Speakers

  • 100 V line technique
  • EDL-18: 20 cm (8") full range speaker
  • EDL-16: 15 cm (6") full range speaker
  • EDL-15: 13 cm (5") full range speaker
  • Metal housing with protective grille
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm

Antal
På fjernlager

Ref: EDL-18

Impedance (Z) -
Transmission method 100 V
Frequency range 90-16,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 10/6/3/1.5 W
Peak music power output (MAX) -
Sensitivity 94 dB/W/m
Max. rated SPL 106 dB
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

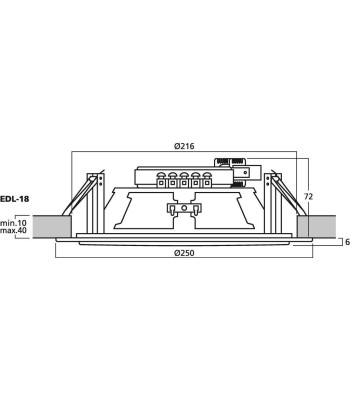

Mounting cutout Ø 216 mm
Mounting depth 85 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 252 mm x 85 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height -
Depth 85 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 1.18 kg
Packing unit 1
Type of speaker 200er
EDL-18
