. CC Pro Shop 1´´ dome tweeter - DT-107 MONACOR .

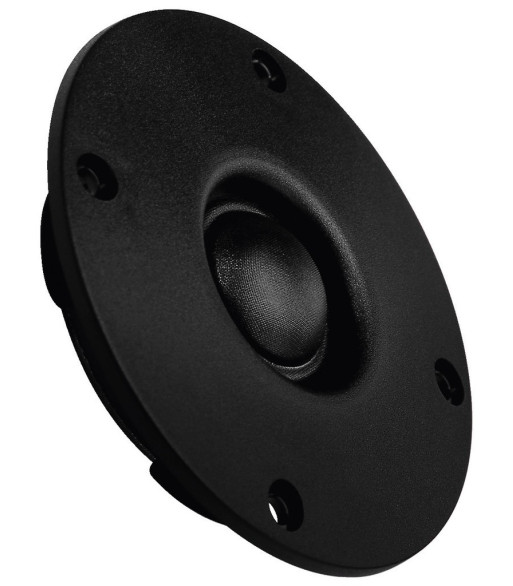

1´´ dome tweeter - DT-107 MONACOR
search
  • 1´´ dome tweeter - DT-107 MONACOR
  • 1´´ dome tweeter - DT-107 MONACOR

MONACOR 1´´ dome tweeter - DT-107

299,00 kr.
Inkl. moms
Hi-fi dome tweeter, 80 W, 8 _
  • Textile soft dome with inside damping
  • Highest linearity with good efficiency
  • Extra silky and brilliant sound
  • For any hi-fi application of high requirements
Antal
På fjernlager

Ref: DT-107

Impedance (Z) 8 _
Line technique -
Frequency range fx-22,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating 80 W
Peak music power output 130 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25 mm
Voice coil former -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 60 mm
Mounting cutout Ø 71 mm
Mounting depth 23 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 96.5 x 23 mm
Outside diameter Ø 96.5 mm
Width Ø 96.5 mm
Height -
Depth 23 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.27 kg
Sales unit 1
Type of speaker -
DT-107
