. CC Pro Shop 5´´ højttaler - SPH-60X MONACOR .

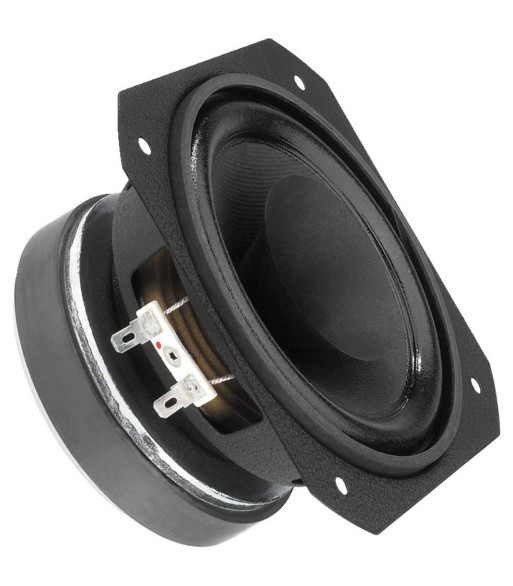

5´´ højttaler - SPH-60X MONACOR
search
  • 5´´ højttaler - SPH-60X MONACOR
  • 5´´ højttaler - SPH-60X MONACOR

MONACOR 5´´ højttaler - SPH-60X

329,00 kr.
Inkl. moms
Full range speaker, 30 W, 8 _
  • Drilled pole core
  • Very good frequency response linearity also in the high frequency range
  • For general applications
  • Speaker from the successful building concepts CT193 and CT194 of the magazine Klang+Ton
Antal
På fjernlager

Ref: SPH-60X

Impedance (Z) 8 _
Line technique -
Frequency range f3-20,000 Hz
Resonant frequency (fs) 60 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 30 W
Peak music power output 60 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 1.19 mm/N
Moving mass (Mms) 5.9 g
Mech. Q factor (Qms) 2.17
Electr. Q factor (Qes) 0.53
Total Q factor (Qts) 0.42
Equivalent volume (Vas) 9 l
DC resistance (Re) 6.2 _
Force factor (BxL) 5.1 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.3 mm
Eff. cone area (Sd) 80 cm2
Magnet weight 370 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 122 mm
Mounting depth 70 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 130 x 130 x 71 mm
Outside diameter -
Width 130 mm
Height 130 mm
Depth 71 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 1.1 kg
Sales unit 1
Type of speaker 5"
SPH-60X
