. CC Pro Shop Horn driver - MRD-34PA MONACOR .
Horn driver - MRD-34PA MONACOR
search
  • Horn driver - MRD-34PA MONACOR
  • Horn driver - MRD-34PA MONACOR

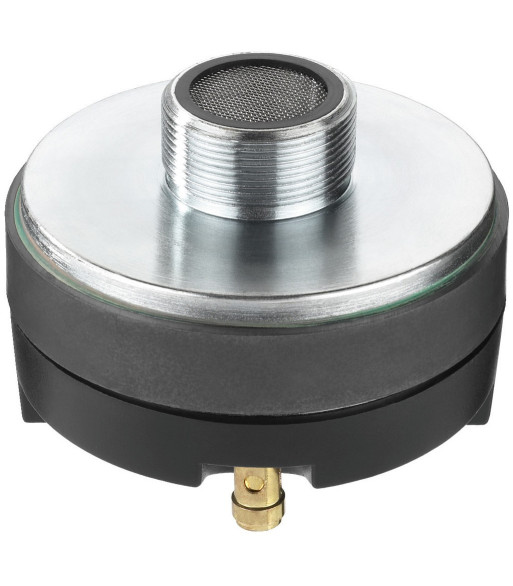

MONACOR Horn driver - MRD-34PA

269,00 kr.
Inkl. moms
PA horn driver, 35 W, 8 _
  • 35 mm (1 3/8 ") standard thread
  • Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAK speakers
  • Matching replacement voice coil PAB-128/VC available at option
  • Suitable for horns MRH-120, MRH-83, MRH-170 and MRH-80
Antal
På fjernlager

Ref: MRD-34PA

Impedance (Z) 8 _
Line technique -
Frequency range fx-20,000 Hz
Resonant frequency (fs) 1.2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 4,000 Hz
Power rating 35 W
Peak music power output 70 W
Sensitivity 104 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 34.5 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 87 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 90 mm x 63 mm
Outside diameter Ø 90 mm
Width Ø 90 mm
Height -
Depth 63 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 0.945 kg
Sales unit 1
Type of speaker 1"
MRD-34PA
