. CC Pro Shop Linietransformator - DIB-110 MONACOR .

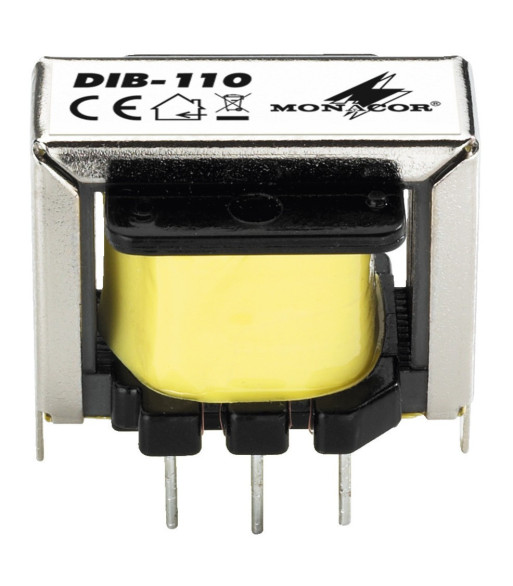

Linietransformator - DIB-110 MONACOR
search
  • Linietransformator - DIB-110 MONACOR
  • Linietransformator - DIB-110 MONACOR

MONACOR Linietransformator - DIB-110

118,00 kr.
Inkl. moms

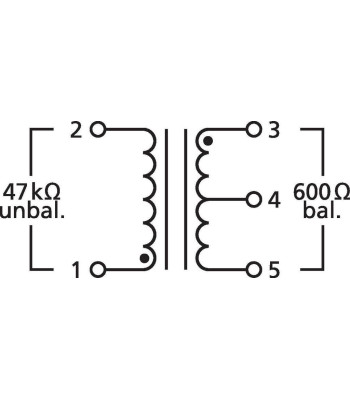

DI transformer 10:1
  • Unshielded version with PCB connections
  • Wideband version
  • Change from unbalanced to balanced and vice versa
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 5 V (1% THD/40 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Antal
På fjernlager

Ref: DIB-110

Type DI box
Frequency range 15-30,000 Hz
Control range -
Control frequencies -
Input signal -
Input sensitivity -
Input impedance 47 k_, unbal.
Output signal -
Output impedance 600 _, bal.
Gain -
Phantom power -
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio 10:1
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions 25 x 24 x 21 mm
Weight 28 g
Inputs PCB connections
Outputs PCB connections
Other features -
DIB-110
