. MONACOR 100V forstærker 1000W digital - PA-9100D .

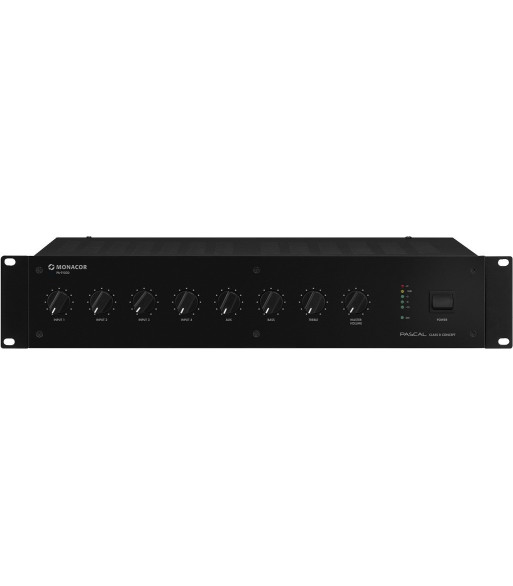

MONACOR 100V forstærker 1000W digital - PA-9100D
search
  • MONACOR 100V forstærker 1000W digital - PA-9100D

MONACOR 100V forstærker 1000W digital - PA-9100D

5.719,00 kr.
Inkl. moms

Mono class D PA mixing amplifier

  • 1 x 1,000 W
  • Class D concept with PASCAL amplifier module
  • Energy-efficient concept due to high efficiency
  • Lightweight design due to compact switch-mode power supply
  • Silent operation due to fanless cooling concept
  • 4 balanced mic/line inputs
  • Mic 1 with priority circuit and automatic talkover
  • Additional connection for desktop microphone via screw terminal
  • 1 aux input
  • Speaker outputs via screw terminals
  • Line output
  • Insert facility, e.g. for effect units, equalizers, feedback controllers
  • Input level control and output level control
  • 2-way tone control for the output
  • 48 V phantom power supply for each microphone input, to be activated individually
  • Limiter switch 4 _/8 _/100 V
  • Removable mounting brackets

Antal
Sidste elementer på lager

Ref: PA-9100D

Peak output power -
Power rating 1,000 W
Power rating at 2 _ -
Power rating at 4 _ 900 W
Power rating at 8 _ 1,000 W
Power rating at 16 _ -
Power rating at 100 V 1000 W/9.2 _
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance 4-8 _
Channels 5
Zones -
Inputs 3 mV (mic),

200 mV (line),

140 mV (aux)
Attenuation factor -
Frequency range 20-20,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 80 dB
Crosstalk attenuation -
THD < 0.1%
Phantom power 48 V
Mains voltage _ 90-230 V
Mains frequency 50-60 Hz
Power consumption, operation 1,030 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 275 mm
Rack spaces, RS 2
Weight 5.3 kg
Connections 4 x XLR (mic/line),

1 x RCA L/R (aux),

screw terminals (speakers)
PA-9100D
1 Enhed

Specifikke referencer

16 andre varer i den samme kategori:

Kuffert m/lader t/ATS/TXA - TXA-12C MONACOR
search

MONACOR Kuffert m/lader...

Transport case with intelligent PWM quick-charge function, for receiver TXA-800R and transmitter TXA-800HSE.
  • For simultaneously charging rech. batteries (NC, NiMH) of up to 12 units
  • Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 5-6 hours, e.g. for 1,300 mAh rech. batteries
  • Each slot with LED for indicating a fault and battery charging status
  • Mechanical reverse polarity protection
  • Wooden case with black imitation leather cover
  • Supplied with matching power supply
  • Dimensions: 300 x 170 x 280 mm

Supplied w/o devices.
Pris 4.219,00 kr.

På fjernlager

Hornhøjttaler - NR-33KS MONACOR
search

MONACOR Hornhøjttaler...

Vejrbestandig hornhøjttaler
  • IP66, beskyttet mod kraftige vandstråler
  • 8 _ højttalersystem
  • Velegnet til indendørs og udendørs brug
  • Robust plastikkabinet
  • Monteringsbeslag og skruer i rustfrit stål medfølger



Pris 399,00 kr.

På fjernlager

8´´ højttaler - SPM-205/8 MONACOR
search

MONACOR 8´´ højttaler -...

Hi-fi bass-midrange speakers, 70 W, 8 _ (/8) and 4 _ (/4)
  • Excellent replacement speakers of the same quality as from the original equipment manufacturer
  • Coated low-resonance paper cone
  • Long-term stable rubber surround
  • To be used preferably in closed or transmission line cabinets
Pris 289,00 kr.

På fjernlager

Spole 0.47mH - LSIP-47/2 MONACOR
search

MONACOR Spole 0.47mH -...

Air Core Coils
With 0.85 mm wire for constructing high-quality hi-fi crossover networks, also of very high quality as parallel coils.
Air core coils, from 0.1 to 3.9mH, wound on a plastic carrier, intended for professional crossover networks of high power for development and production. In a wire thickness from 0.85 to 1.2mm Ø CUL.
Pris 59,00 kr.

På fjernlager

Drejeknap - ATT-20 MONACOR
search

MONACOR Drejeknap - ATT-20

Rotary knob, white
  • For shafts Ø 6 mm, 18 teeth
  • Suitable for PA volume controls ATT-.../WS
  • Diameter: approx. 20 mm
  • Height: approx. 17 mm
Pris 23,00 kr.

På fjernlager

Trådløs modtager - TXS-626 IMG STAGELINE
search

IMG STAGELINE Trådløs...

2-kanals trådløs mikrofonmodtager, med UHF PLL teknologi.

  • 1.000 UHF frekvenser (672,000-696,975 MHz) til hver kanal (10 grupper af 100 frekvenser)
  • ACT funktion til transmission af den valgte frekvens til den trådløse sender via infrarødt signal
  • Automatisk søgning
  • Ægte diversity system med aftagelige antenner (BNC stik)
  • Volumen- og squelchkontrol for hver kanal
  • Hver kanal har LCD-indikator for gruppe/kanal, antenne A/B, RF signalstyrke, AF lydstyrke samt LED-indikator for lydstyrke
  • XLR udgang for hver kanal, balanceret
  • 6,3 mm udgang (mixed signal)
  • Robust metalkabinet
  • Strømforsyning medfølger
  • 482 mm (19") rack installation, 1 U



Pris 2.439,00 kr.

På fjernlager

XLR-hun/jack-han - NTA-118 MONACOR
search

MONACOR XLR-hun/jack-han -...

Adapters XLR/6.3mm stereo plug
  • Nickel-plated metal body
  • Gold-plated XLR contacts
  • Not suitable for speaker applications!
NTA-118 = XLR inline jack
NTA-119 = XLR plug
Pris 34,95 kr.

På fjernlager

Mikrofonstativ - MS-100/SW Monacor
  • På tilbud!
  • -50,00 kr.
search

MONACOR Mikrofonstativ -...

Mikrofonstativ til bord/gulv
  • Sortlakeret
  • Stødabsorberende
  • Bevægelig boom (armlængde: 375 mm)
  • Justerbar højde: 365-550 mm
  • Gevind: 16 mm (5/8") og 9 mm (3/8")
  • Vægt: 2,5 kg

Pris 299,00 kr. Normalpris 349,00 kr.

På lager

100V højttaler - EDL-620 MONACOR
search

MONACOR 100V højttaler...

PA loftshøjttaler
  • 100 V line-teknologi via audiotransformer med tapsætninger
  • Ekstra høj maksimumeffekt
  • Til lofter med en tykkelse fra 5 til 22 mm
  • Full range højttaler, type 165
  • Robust metaludførelse (chassis og frontgitter)



Pris 359,00 kr.

På fjernlager

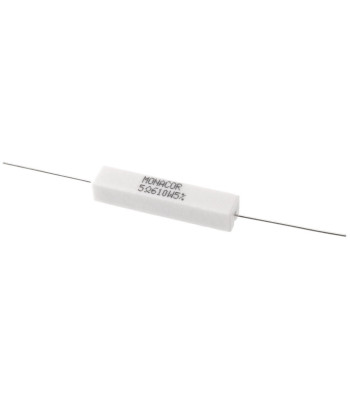

Modstand 5.6 Ohm/10W - LSR-56/10 MONACOR
