. CC Pro Shop 10´´ højttaler - SP-250P MONACOR .
  • På tilbud!
  • -149,00 kr.

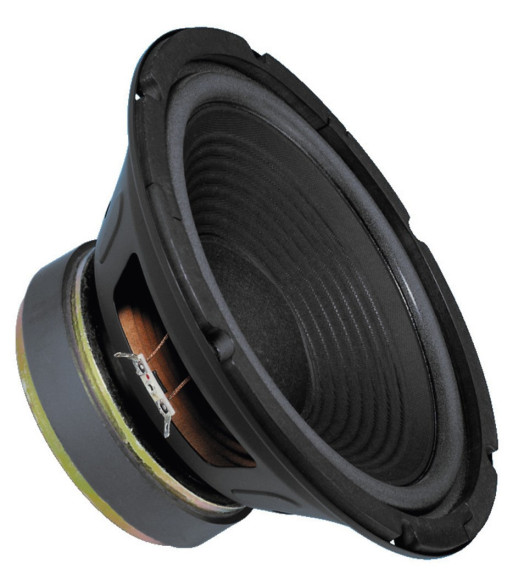

10´´ højttaler - SP-250P MONACOR
search
  • 10´´ højttaler - SP-250P MONACOR
  • 10´´ højttaler - SP-250P MONACOR

MONACOR 10´´ højttaler - SP-250P

709,00 kr.
560,00 kr. Spar 149,00 kr.
Inkl. moms
Bass speaker, 100 W, 8 _
  • With drilled pole core
  • Great linear excursion for powerful bass reproductions
Antal
Sidste elementer på lager

Ref: SP-250P

Impedance (Z) 8 _
Line technique -
Frequency range f3-4,000 Hz
Resonant frequency (fs) 33 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 100 W
Peak music power output 200 W
Sensitivity 94 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.69 mm/N
Moving mass (Mms) 33 g
Mech. Q factor (Qms) 2.33
Electr. Q factor (Qes) 0.38
Total Q factor (Qts) 0.33
Equivalent volume (Vas) 115 l
DC resistance (Re) 6.5 _
Force factor (BxL) 10.8 Tm
Voice coil induct. (Le) 1.2 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (XMAX) ±3.5 mm
Eff. cone area (Sd) 346 cm2
Magnet weight 1.1 kg
Magnet diameter Ø 145 mm
Mounting cutout Ø 233 mm
Mounting depth 110.5 mm
Mounting hole diameter Ø 250 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 265 mm x 120 mm
Outside diameter Ø 265 mm
Width Ø 265 mm
Height -
Depth 120 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 3.34 kg
Sales unit 1
Type of speaker
SP-250P
1 Enhed

Specifikke referencer
