. NEUTRIK PowerCon t/230V - NAC3FPX-TOPSB .
NEUTRIK PowerCon t/230V - NAC3FPX-TOPSB
search
  • NEUTRIK PowerCon t/230V - NAC3FPX-TOPSB

NEUTRIK PowerCon t/230V - NAC3FPX-TOPSB

118,00 kr.
Inkl. moms

NEUTRIK POWERCON True1 TOP Connectors

  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to _ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
  • Self-extinguishing according to UL 94V-0
  • Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)

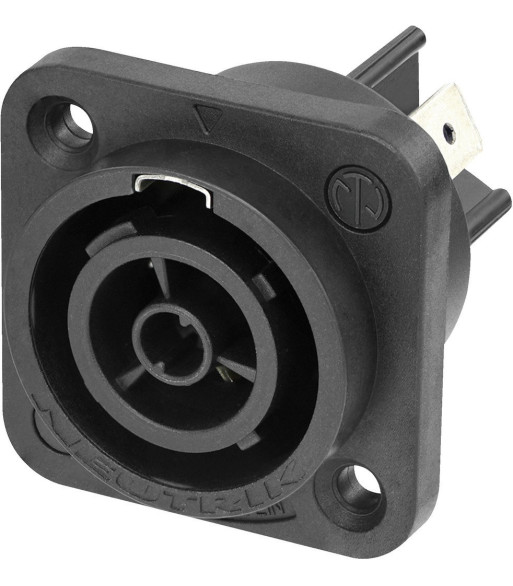

NEUTRIK POWERCON True1 TOP panel jack

  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to _ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Self-extinguishing according to UL 94V-0

Antal
På fjernlager

Ref: NAC3FPX-TOPSB

Description panel jack
Type NEUTRIK POWERCON TOP
Quantity 1
Features latching device
Colour/colour coding black
Power rating _ 250 V/16 A
Insulating resistance > 100 M_
Dielectric strength DC 4 kV/_ 2.8 kV
Certification UL, VDE
Pole number 2+PE
Cable inlet -
Suitable cable cross section -
Connection blade terminals, 6.35 mm
Strain relief -
Cable bending protection -
Stereo -
Mono -
Switches -
Material plastic
Central fixing -
Contact type -
No. of contacts 2
Contact width -
Contact distance -
Admiss. ambient temp. -30-+80 °C
Dimensions 35.4 x 35.4 x 43 mm
Diameter -
Length 43 mm
Weight 20 g
Other features -
NEUTRIK
NAC3FPX-TOPSB
