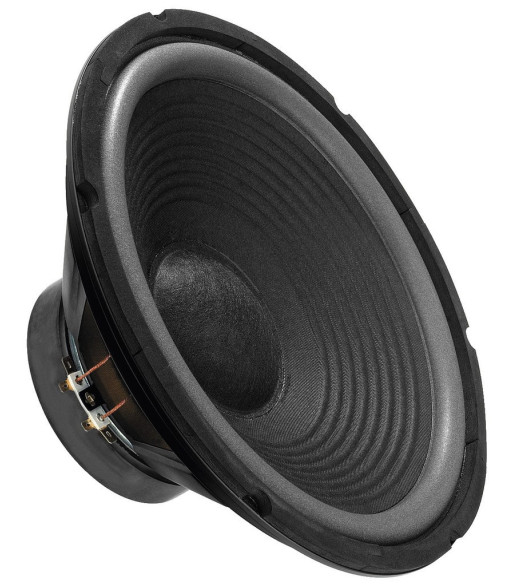

MONACOR 12´´ højttaler - SP-302E

499,00 kr.
Inkl. moms
Hi-fi bass-midrange speaker, 100 W, 4 _
  • Multi-purpose speaker
  • Foam surround
  • Replacement speaker for closed cabinets
Antal
På fjernlager

Ref: SP-302E

Impedance (Z) 4 _
Line technique -
Frequency range f3-5,500 Hz
Resonant frequency (fs) 39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 100 W
Peak music power output 200 W
Sensitivity 95 dB
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.39 mm/N
Moving mass (Mms) 40 g
Mech. Q factor (Qms) 4.24
Electr. Q factor (Qes) 0.87
Total Q factor (Qts) 0.72
Equivalent volume (Vas) 141 l
DC resistance (Re) 3.6 _
Force factor (BxL) 6.63 Tm
Voice coil induct. (Le) 1.1 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 518 cm2
Magnet weight 960 g
Magnet diameter Ø 125 mm
Mounting cutout Ø 281mm
Mounting depth 114 mm
Mounting hole diameter Ø 292 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 304 mm x 118 mm
Outside diameter Ø 304 mm
Width Ø 304 mm
Height -
Depth 118 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 2.6 kg
Sales unit 1
Type of speaker
SP-302E
