. CC Pro Shop 6 3/4´´ højttaler - SPH-170 MONACOR .
6 3/4´´ højttaler - SPH-170 MONACOR
search
  • 6 3/4´´ højttaler - SPH-170 MONACOR
  • 6 3/4´´ højttaler - SPH-170 MONACOR

MONACOR 6 3/4´´ højttaler - SPH-170

769,00 kr.
Inkl. moms

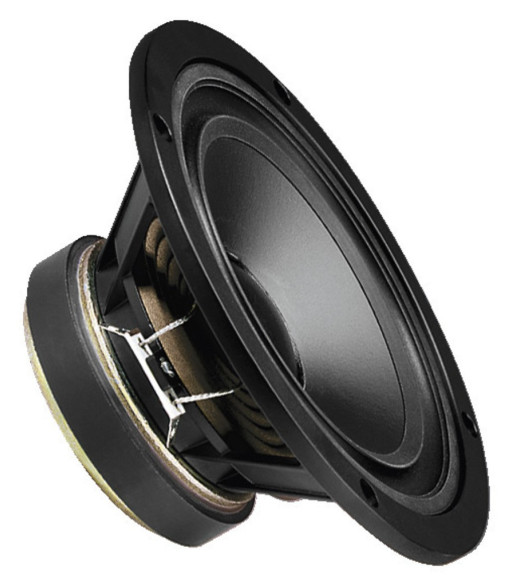

Hi-fi bass-midrange speaker, 50 W, 8 _
  • Speakers of very high quality with extensive equipment
  • Round aluminium diecast basket with recessed screw head holes
  • Inverse rubber surround
  • Drilled pole core
  • Cone with excellent damping
  • Exceptionally deep bass reproduction for any bass and bass-midrange application
HOBBY HiFi 04/2017
"Increadibly linear and wideband sound pressure frequency response. The ideal speaker for high-quality 2-way systems."
Antal
På fjernlager

Ref: SPH-170

Impedance (Z) 8 _
Line technique -

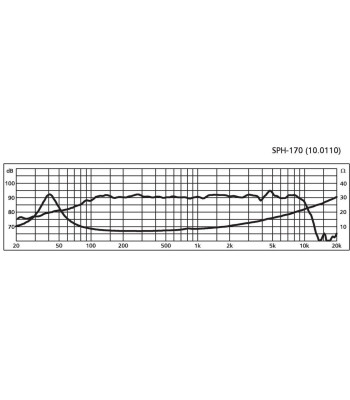

Frequency range f3-5,000 Hz
Resonant frequency (fs) 38 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 50 W
Peak music power output 80 W
Sensitivity 90 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 1.43 mm/N
Moving mass (Mms) 12.5 g
Mech. Q factor (Qms) 2.38
Electr. Q factor (Qes) 0.55
Total Q factor (Qts) 0.44
Equivalent volume (Vas) 37 l
DC resistance (Re) 6.2 _
Force factor (BxL) 5.9 Tm
Voice coil induct. (Le) 0.45 mH
Voice coil diameter 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 137 cm2
Magnet weight 370 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 150 mm
Mounting depth 73 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 185 mm x 80 mm
Outside diameter Ø 185 mm
Width Ø 185 mm
Height -
Depth 80 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1.3 kg
Sales unit 1
Type of speaker
SPH-170

Specifikke referencer
