IMG STAGELINE PA-monitor aktiv 300W - FLAT-M8

3.369,00 kr.
Inkl. moms

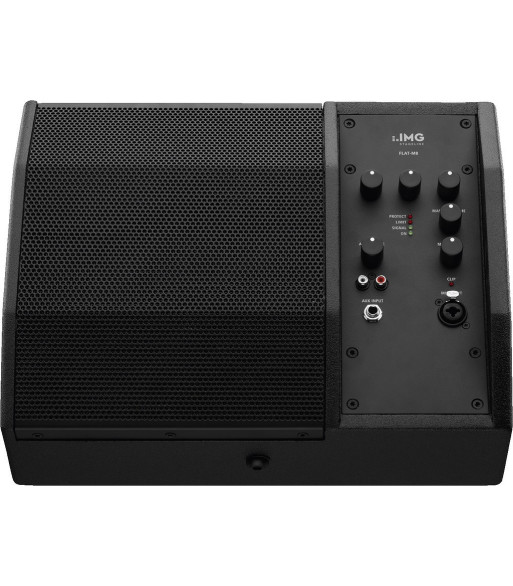

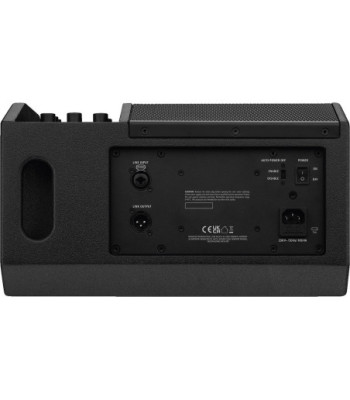

Active PA stage monitor speaker system, 300 W
  • Flat and very compact full range system
  • Fitted with a 20 cm (8") coaxial speaker with horn tweeter
  • Class D amplifier system
  • Sound pressure at nominal power: 121 dB
  • Indication of protect, limiter, signal and power-on
  • Volume control and 3-way tone control (bass, midrange and treble)
  • Balanced line/mic input and feed-through output
  • Unbalanced line input RCA L/R or 6.3 mm jack
  • Switchable automatic power-off
  • High-quality plywood cabinet with protective metal grille
  • M10 threaded insert for stand adapter or mounting device

Antal
Sidste elementer på lager

Ref: FLAT-M8

Active/passiveactive
Transmission technologycable
Total output power300 W
Power rating (RMS)100 W
Total power rating-
Power rating (RMS)-
Impedance-
Frequency range70-21,000 Hz
THD-
S/N ratio-
Input signal180 mV/5,6 k_ (line, bal.),

180 mV/5,6 k_ (aux, RCA)

1.5 mV/1.2 k_ (mic, bal.),

70 mV/4 k_ (aux, 6.3 mm jack, asym.)

System1 x 2-way coaxial speaker
Full range speaker-
Bass speaker1 x 20 cm (8")
Midrange speaker-
Tweeter1 x coaxial horn tweeter
Number of speakers2
Speaker size20 cm (8")
SPL99 dB/W/m
Max. rated SPL121 dB
Beam angle-
Radiation angle, horizontal70°
Radiation angle, vertical50°
Features-
Housing materialMDF
Colourblack
Mounting device1 x M10 threaded insert
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply∿ 230 V/50 Hz/100 VA
Dimensions375 x 185 x 330 mm
Width375 mm
Height185 mm
Depth330 mm
Weight7.48 kg
Inputs1 x comb. XLR/6.3 mm (mic),

1 x comb. XLR/6.3 mm (line),

1 x RCA L/R,

1 x 6.3 mm stereo jack

Outputs1 x XLR direct out
Replacement voice coil-
Other featureslimiter
AccessoriesFLAT-M8BAG
Packing dimensions (W x H x L)0.43 x 0.29 x 0.47 m
Gross weight8.82 kg
Net weight7.48 kg
IMG STAGELINE
FLAT-M8
1 Enhed

Specifikke referencer

16 andre varer i den samme kategori:

MONACOR Panelmeter -...
search

MONACOR Panelmeter -...

Moving Coil Panel Meters
With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination.
For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.
Pris 242,00 kr.

På fjernlager

Potmt lin 20KOhm - VRB-100M20 MONACOR
search

MONACOR Potmt lin 20KOhm -...

Potentiometers, mono
With slotted 6 mm shaft, for 18-tooth push-on buttons, with nut fixing and PCB solder connections.
Pris 20,00 kr.

På fjernlager

PA-højttaler aktiv 450W - PAK-415 IMG STAGELINE
search

IMG STAGELINE PA-højttaler...

PAK-400 serien
PAK-400 serien er velegnet til mange formål, udnytter moderne teknologi og en individuel lydindstilling, som opfylder flere forskellige behov. Forstærkersystemet er en kombination af class D til bassen og class A/B til hornet. Ved brug af presets er det nemt at finde den perfekte lyd og med high-pass filtret, der aktiveres ved 75 Hz, kan højttalerne nemt matches med subwooferen PSUB-418AK.

Aktivt PA højttalersystem med 2-kanals forstærker, 450 W

  • Kompakt 2-vejs full range system med robust plastikkabinet
  • Moderne forstærkersystem (bas: class D, horn: class A/B)
  • Lydtryk ved nominel effekt: 124 dB
  • 4 presets: normal, Hi-Fi, DJ og voice, high-pass filter: 75 Hz
  • MIC/LINE indgang
  • LED indikator for power, signal og peak/clipping
  • M10 gevindindsats (2 i toppen, 2 i bunden, 1 på bagsiden)
  • Grundet kabinettets form også egnet som scenemonitor
  • Flange til placering på stativ og bærehåndtag

TenDance 06/2015
"The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs."



Pris 4.689,00 kr.

På fjernlager

Stel skilletrafo - FGA-30M MONACOR
search

MONACOR Stel skilletrafo -...

Skilletransformer, i kompakt design, til reduktion af signalforstyrrelser og brummelyde, som kan opstå, fx når PC-lydkort eller bærbare PC'er tilsluttes en forstærker.

  • Galvanisk adskilte indgange og udgange
  • 2 phonostik
  • 3,5 mm stereo minijacks
  • Indgangs-/udgangsimpedans: 20 k_
  • Frekvensområde: 20-30.000 Hz
  • THD: < 0,01 %
  • Transmissionsforhold 1:1
  • Ø 24 mm x 38 mm, 32 g
  • Længde inkl. kabel: ca. 115 cm



Pris 177,00 kr.

På fjernlager

MONACOR Indbygningsmixer - MXT-52MP3
search

MONACOR Indbygningsmixer -...

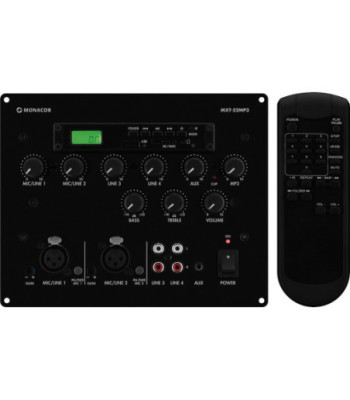

Mixer with integrated MP3 player,
