. MONACOR 100V højttaler EN54 2 x 6Wmax - EDL-165AB/WS .
MONACOR 100V højttaler EN54 2 x 6Wmax - EDL-165AB/WS
search
  • MONACOR 100V højttaler EN54 2 x 6Wmax - EDL-165AB/WS

MONACOR 100V højttaler EN54 2 x 6Wmax - EDL-165AB/WS

569,00 kr.
Inkl. moms

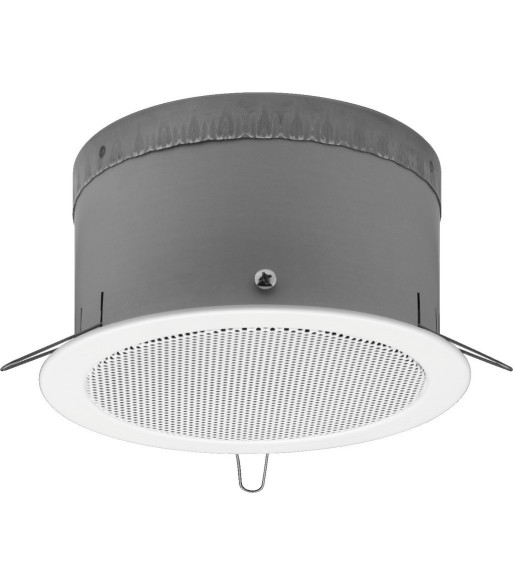

PA A/B ceiling speaker,
with EN 54-24 certification for systems with A/B speaker distribution according to EN 60849.

  • 100 V line technique
  • 13 cm full range speaker with dual voice coil
  • 2 separate transformers with power taps with 6/3/1.5 W each
  • Connection via 2 ceramic screw terminals inside the cabinet
  • Quick mounting with stainless steel spring clips
  • Metal housing with fire protection cover and protective metal front grille
  • Ball-proof according to DIN 18032, Part 3

Antal
På fjernlager

Ref: EDL-165AB/WS

Impedance (Z) -
Transmission method 100 V
Frequency range 80-19,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 2 x 6/3/1.5 W
Peak music power output (MAX) -
Sensitivity 93 dB/W/m
Max. rated SPL 101 dB
Max. voltage -
Radiation angle, horizontal 180°
Radiation angle, vertical 180°
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -
Mounting cutout Ø 140-150 mm
Mounting depth 90 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 170 mm x 95 mm
Outside diameter Ø 170 mm
Width Ø 170 mm
Height -
Depth 95 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 1.4 kg
Packing unit 1
Type of speaker 130
EDL-165AB/WS
