. CC Pro Shop HiFi dome tweeter - DTM-104/4 MONACOR .

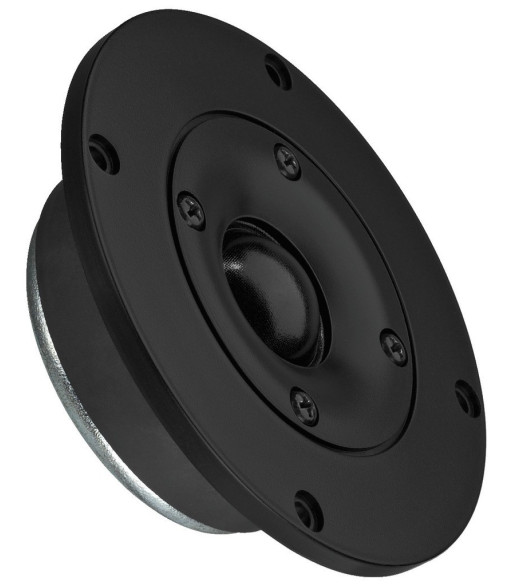

HiFi dome tweeter - DTM-104/4 MONACOR
search
  • HiFi dome tweeter - DTM-104/4 MONACOR
  • HiFi dome tweeter - DTM-104/4 MONACOR

MONACOR HiFi dome tweeter - DTM-104/4

249,00 kr.
Inkl. moms
Hi-fi dome tweeters, 45 W, 8 _ (/8) and 4 _ (/4)
  • Textile dome tweeter with Kapton voice coil former
  • Excellent radiation pattern due to waveguide
  • Very well-suited as a replacement for high-quality hi-fi speakers
Antal
På fjernlager

Ref: DTM-104/4

Impedance (Z) 4 _
Line technique -

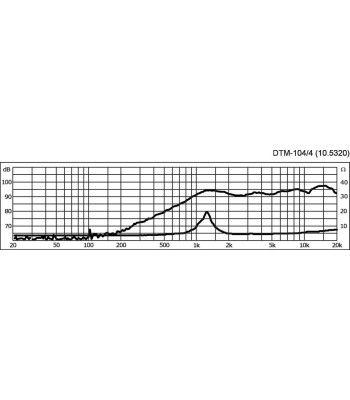

Frequency range fx-19,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating 45 W
Peak music power output 100 W
Sensitivity 92 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 70 mm
Mounting cutout Ø 80 mm
Mounting depth 29 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 104 x 32 mm
Outside diameter Ø 104 mm
Width Ø 104 mm
Height -
Depth 32 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 540 g
Sales unit 1
Type of speaker -
DTM-104/4
