. CC Pro Shop Line-trafo - NTE-10/3 NEUTRIK .
Line-trafo - NTE-10/3 NEUTRIK
search
  • Line-trafo - NTE-10/3 NEUTRIK
  • Line-trafo - NTE-10/3 NEUTRIK

NEUTRIK Line-trafo - NTE-10/3

201,00 kr.
Inkl. moms

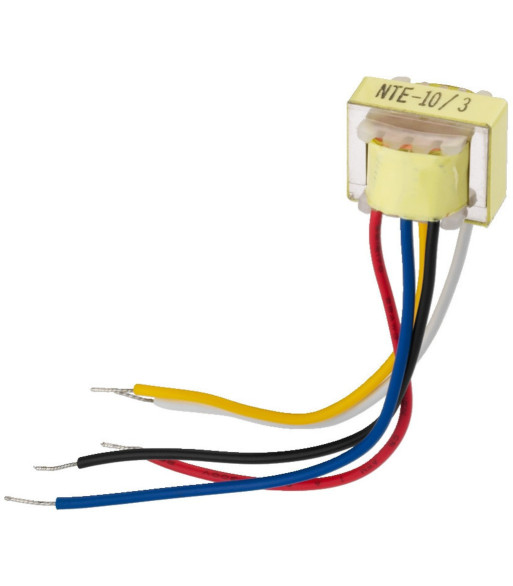

Audio transformer 1:3/1:10 for microphone signals, from NEUTRIK.
  • Very compact design, e.g. also suitable for installation into connector housings
  • Unshielded version with bare wire connections (70 mm)
  • Wideband version
  • Balance adjustment
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 350 mV/380 mV (1% THD/50 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Antal
På fjernlager

Ref: NTE-10/3

Type transformer
Frequency range 20-20,000 Hz
Control range -
Control frequencies -
Input signal 380 mV
Input sensitivity -
Input impedance 200 _
Output signal -
Output impedance 10 k_/50 k_
Gain -
Phantom power
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -

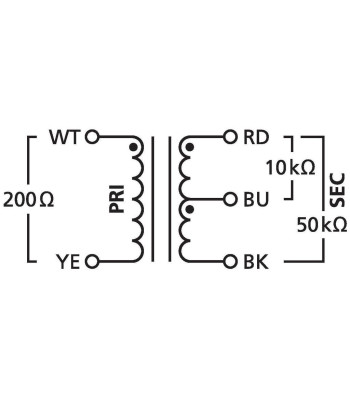

Transmission ratio 1:3/1:10
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions 14 x 11 x 12 mm
(w/o cable)
Weight 4 g
Inputs bare cable ends
Outputs bare cable ends
Other features -
NEUTRIK
NTE-10/3
