WAGO-stik - CC-142 ORG.MAKERS BRAND
search
  • WAGO-stik - CC-142 ORG.MAKERS BRAND

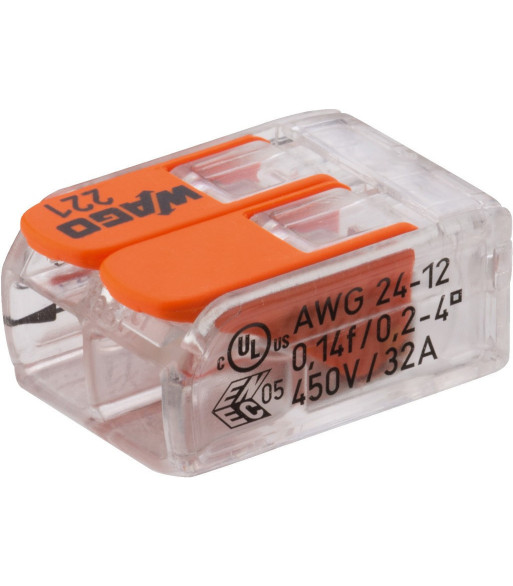

WAGO-stik - CC-142

7,00 kr.
Inkl. moms
Connecting terminal from WAGO
  • 2-conductor terminal with operating levers
  • Different types of wires and cross sections from 0.14 to 4 mm2 can be combined as required
  • Power rating: 450 V/32 A
  • Continuous operating temperature: up to 105 °C
  • Correct position of the conductor and stripping length can be visually checked due to transparent housing
  • Two test slots for any standard test prod
  • Of very compact size, thus, ideally suited for application in confined spaces
Antal
På fjernlager

Ref: CC-142

Type connecting terminal
Type WAGO
Quantity 1
Features operating levers
Colour/colour coding transparent
Power rating 450 V/32 A
Insulating resistance -
Dielectric strength 4 kV
Certification UL, ABS, LR
Pole number 2
Cable inlet AWG 24-12
Suitable cable cross section flexible conductors: 0.14-4 mm2
solid conductors: up to 0.2-4 mm2
Connection 2-conductor terminal with operating levers
Strain relief -
Cable bending protection -
Stereo -
Mono -
Switches -
Material -
Central fixing -
Contact type -
No. of contacts -
Contact width -
Contact distance -
Admiss. ambient temp. 105 °C
Dimensions 13.1 x 8.3 x 18.6 mm
Diameter -
Length -
Weight 1.6 g
Other features -
ORG.MAKERS BRAND
CC-142

Specifikke referencer
