. CC Pro Shop 12´´ højttaler - SP-302PA MONACOR .

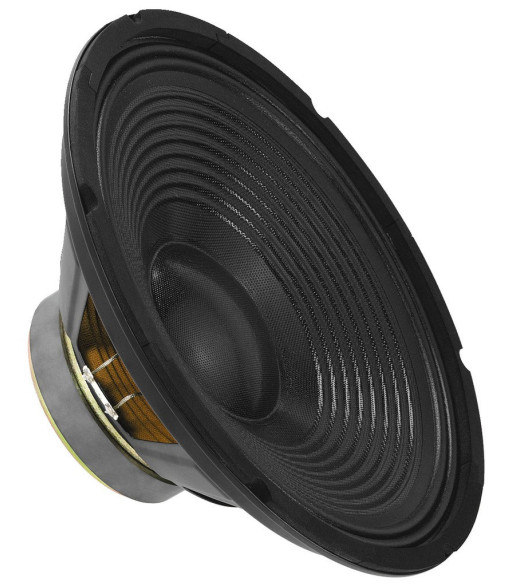

12´´ højttaler - SP-302PA MONACOR
search
  • 12´´ højttaler - SP-302PA MONACOR
  • 12´´ højttaler - SP-302PA MONACOR

MONACOR 12´´ højttaler - SP-302PA

469,00 kr.
Inkl. moms
Universal bass speaker, 100 W, 8 _
For bass applications, also in power speaker systems.
Antal
På fjernlager

Ref: SP-302PA

Impedance (Z) 8 _
Line technique -

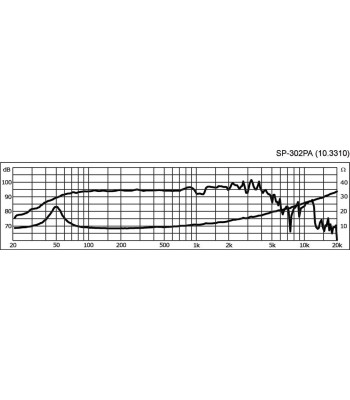

Frequency range f3-4,000 Hz
Resonant frequency (fs) 45 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 100 W
Peak music power output 200 W
Sensitivity 90 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.15 mm/N
Moving mass (Mms) 57 g
Mech. Q factor (Qms) 2.2
Electr. Q factor (Qes) 1.47
Total Q factor (Qts) 0.89
Equivalent volume (Vas) 51 l
DC resistance (Re) 7.7 _
Force factor (BxL) 10.5 Tm
Voice coil induct. (Le) 0.5 mH
Voice coil diameter Ø 38 mm
Voice coil former aluminium
Linear excursion (XMAX) ±2.5 mm
Eff. cone area (Sd) 542 cm2
Magnet weight 850 g
Magnet diameter Ø 119 mm
Mounting cutout Ø 280 mm
Mounting depth 116 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 303 mm x 125 mm
Outside diameter Ø 303 mm
Width Ø 303 mm
Height -
Depth 125 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 2.36 kg
Sales unit 1
Type of speaker
SP-302PA

Specifikke referencer

16 andre varer i den samme kategori:

MONACOR Profilkasse - AH-102
search

MONACOR Profilkasse - AH-102

Series of Utility Cases
  • Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22 mm distance to the front panel)
  • Exchangeable front panel with protective foil of 1.5 mm aluminium plate
  • Mat black ABS plastic side covers
  • Material surface is anodised and mat etched or black (SW)
  • Total height: 36.5 mm
Pris 165,00 kr.

På fjernlager

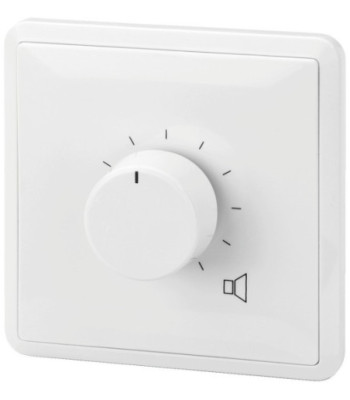

ELA-volumekontrol - ATT-306PEU MONACOR
search

MONACOR ELA-volumekontrol -...

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay
  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65 mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal
Pris 229,00 kr.

På fjernlager

MONACOR 100V højttalersæt sort - WALL-06T/SW
search

MONACOR 100V højttalersæt...

Pair of 2-way PA speaker systems

  • 100 V wall speaker with plastic cabinet in black
  • 4 power taps as well as switchable to 8 _ operation
  • 16 cm (6") bass-midrange speaker and 25 mm (1") dome tweeter
  • Suitable for outdoor applications (IP65)
  • Weatherproof
  • High sound quality and speech intelligibility
  • Mounting bracket for pivoting and tilting
  • Connecting terminal with cover

Pris 1.869,00 kr.

På fjernlager

XLR-kabel 20m sort - MEC-2000/SW Monacor
search

MONACOR XLR-kabel 20m sort...

XLR kabler
Line- og mikrofonforlængerkabel.
  • 1 x XLR hunstik og 1 x XLR hanstik, balancerede
  • Skærmet støjsvagt OFC kabelmateriale, Ø 6,5 mm



Pris 399,00 kr.

På fjernlager

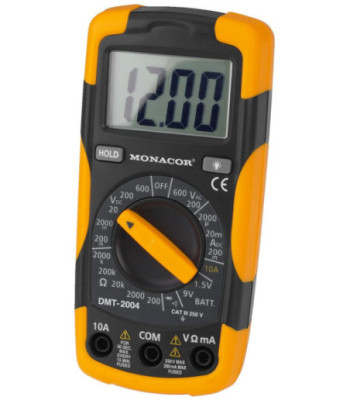

Digital multimeter - DMT-2004 MONACOR
search

MONACOR Digital multimeter...

Digitalt multimeter, til generel brug.
  • Opløsning: 2.000 cifre
  • Måling af spænding op til 250 V_/DC
  • Måling af strømstyrke op til 10 A_/DC
  • Måling af modstand op til 2 M_
  • Batteritest af 9 V og 1,5 V batterier
  • Akustisk gennemløbstest
  • Diodetest
  • Gem data (lagring af målt værdi)
  • LCD med mulighed for baggrundsbelysning
  • Beskyttelse mod overbelastning
  • Testkabler medfølger



Pris 289,00 kr.

På lager

100V forstærker 1x240Wrms - PA-324 MONACOR
search

MONACOR 100V forstærker...

Mono PA mixing amplifier
  • 1 x 240 W
  • 3 microphone inputs, one of which is a balanced input
  • Mic 1 with priority circuit and adjustable automatic talkover
  • 2 aux inputs
  • 1 telephone input for telephone systems with audio output
  • Speaker outputs via screw terminals
  • 1 line output
  • Input and output level controls
  • 2-way tone control for the output
  • 48 V phantom power for channel 1, can be switched on additionally
  • 482 mm (19") rack installation with supplied mounting brackets
Pris 4.769,00 kr.

På fjernlager

XLR-stik han - XLR-823/P/SW MONACOR
search

MONACOR XLR-stik han -...

XLR plug, 3 poles
  • Black metal version
  • Nickel-plated contacts
  • Cable bending protection and self-adjusting clamps as strain relief
  • For cables: Ø 5-7.5 mm
Pris 35,00 kr.

På fjernlager

Monteringsplade - CP-6/SW MONACOR
search

MONACOR Monteringsplade -...

Terminals
For building PA speaker systems and for general use, flush mounting, assembled or as recessed connector plates with pre-drilled holes, robust steel version, black lacquered.
PA terminal, for 1 x Speakon, without connectors.
Pris 53,00 kr.

På fjernlager

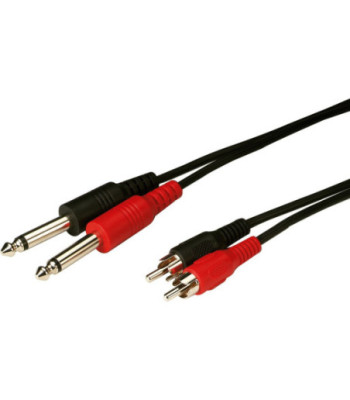

Jack-phonokabel 5m - MCA-504 MONACOR
search

MONACOR Jack-phonokabel 5m...

Audio Connection Cables
  • For connecting a mixer to an amplifier
  • 2 x RCA plug to 2 x 6.3 mm mono plug
  • Colour coding
Pris 106,00 kr.

På fjernlager

Kond. 22uF (4 stk) - LSC-220NP MONACOR
search

MONACOR Kond. 22uF (4 stk)...

Bipolar Electrolytic Capacitors 1.5-220 µF
  • Voltage stability: _ 35 V/ DC current  100 V, 150 W/8 _, 300 W/4 _
  • Very low loss factor
  • High current rating with long-term value stability
Pris 89,00 kr.

På fjernlager

XLR-bøsning m/Anti-Shock - XLR-703JSM MONACOR
search

MONACOR XLR-bøsning...

Shock-mount base with XLR socket
  • Attenuation of impact noise and structure-borne noise due to rubber-cushioned 3-pole XLR socket
  • 1.2 m connection cable with 3-pole XLR plug
Pris 299,00 kr.

På fjernlager

Neutrik XLR-adapter - NA-3M5F NEUTRIK
search

NEUTRIK Neutrik XLR-adapter...

Adapter XLR/XLR, for lighting systems with DMX512 interface.
  • Nickel-plated metal body
  • Not suitable for speaker applications!
3-pole XLR plug to 5-pole XLR inline jack
Pris 206,00 kr.

På lager

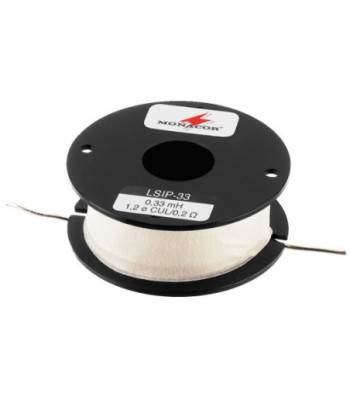

Spole 0.33mH - LSIP-33 MONACOR
