. CC Pro Shop 100V zoneforstærker 600Wrms - PA-6600 MONACOR .
100V zoneforstærker 600Wrms - PA-6600 MONACOR
search
  • 100V zoneforstærker 600Wrms - PA-6600 MONACOR
  • 100V zoneforstærker 600Wrms - PA-6600 MONACOR

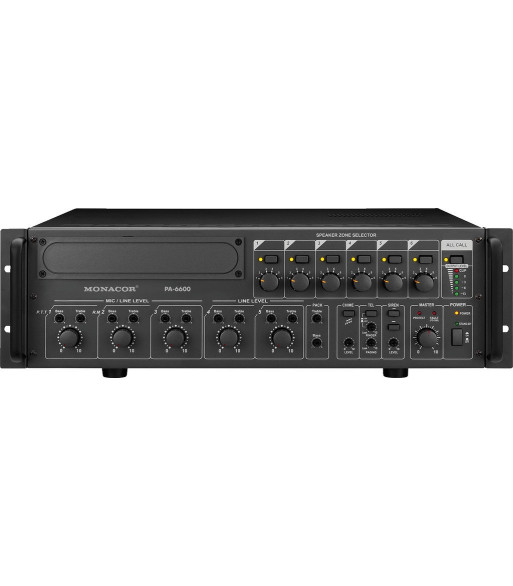

MONACOR 100V zoneforstærker 600Wrms - PA-6600

10.689,00 kr.
Inkl. moms
6-zone mono PA mixing amplifiers
  • 1 x 240 W (PA-6240)
  • 1 x 480 W (PA-6480)
  • 1 x 600 W (PA-6600)
  • 6 zones, can be controlled individually
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, level display via LEDs, regulated fan
  • Insertions for various functions are available at option
  • 17 V phantom power for electret microphones
  • Connection for zone paging microphone PA-6000RC
  • 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option
  • 3 insertion facilities on the rear panel for optional modules with the following features:
    • PA-6FD: fault detection
    • PA-6FM: fault monitoring
    • PA-6FR: anti-feedback
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets
Antal
På fjernlager

Ref: PA-6600

Channels 5
Zones 6
Power rating 600 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 850 W
Output impedance -
Inputs 2.5 mV/5 k_, 0.3 V/5 k_ (mic/line),
0.3 V/15 k_ (line),
0.775 V/10 k_ (preamplifier)
Attenuation factor -
Frequency range 55-16,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 70 dBA (mic),
> 80 dBA (line)
Crosstalk attenuation -
THD < 1%
Power supply _ 230 V/50 Hz/1,700 VA,
DC current   24 V/50 A
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,500 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC current  24 V
Power supply (possible alternative) DC current  40 A
Admiss. ambient temp. 0-40 °C
Dimensions 430 x 133 x 352 mm, 3 RS
Width 430 mm
Height 133 mm
Depth 352 mm
Rack spaces, RS 3
Weight 20 kg

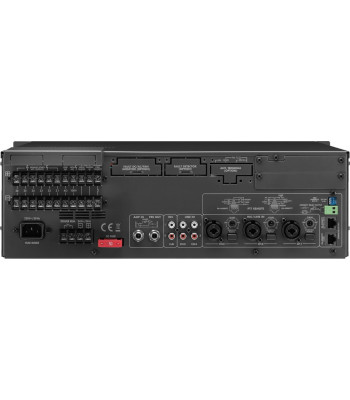

Connections 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),
1 x 6.3 mm jack (preamplifier),
1 x RJ45 (push-to-talk mic),
screw terminals (telephone system),
screw terminals (speakers),
1 x 6.3 mm jack (ext. amplifier),
1 x RCA L/R (record)
PA-6600
