. CC Pro Shop 8´´ højttaler - SPH-225C NUMBER ONE .
8´´ højttaler - SPH-225C NUMBER ONE
search
  • 8´´ højttaler - SPH-225C NUMBER ONE
  • 8´´ højttaler - SPH-225C NUMBER ONE

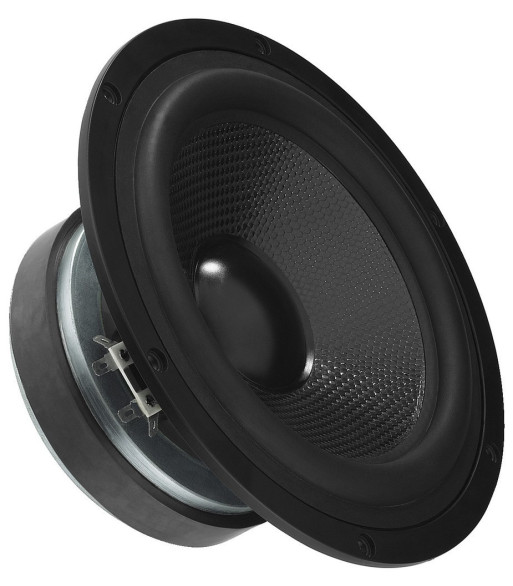

MONACOR 8´´ højttaler - SPH-225C

1.229,00 kr.
Inkl. moms
High-end bass speaker, 120 W, 8 _
  • High-rigidity cone
  • Extra long excursion
  • Small loss and low distortion
  • For an impressive fundamental bass in any high-quality hi-fi combination and smaller subwoofers
  • Also possible as a bass-midrange speaker in 2-way combinations
  • Suitable for cabinets of extra small dimensions
Klang+Ton 06/2014
"Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials."
Antal
På fjernlager

Ref: SPH-225C

Impedance (Z) 8 _
Line technique -

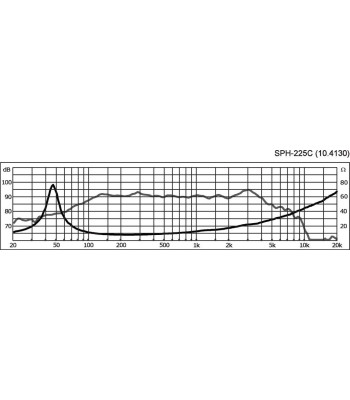

Frequency range f3-3,000 Hz
Resonant frequency (fs) 39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 120 W
Peak music power output 200 W
Sensitivity 90 dB
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.43 mm/N
Moving mass (Mms) 36.6 g
Mech. Q factor (Qms) 4.94
Electr. Q factor (Qes) 0.31
Total Q factor (Qts) 0.30
Equivalent volume (Vas) 24 l
DC resistance (Re) 5.9 _
Force factor (BxL) 13.17 Tm
Voice coil induct. (Le) 0.8 mH
Voice coil diameter Ø 50 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 6 mm
Eff. cone area (Sd) 201 cm2
Magnet weight 1.1 kg
Magnet diameter Ø 140 mm
Mounting cutout Ø 181 mm
Mounting depth 97 mm
Mounting hole diameter Ø 209 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 222 mm x 102 mm
Outside diameter Ø 222 mm
Width Ø 222 mm
Height -
Depth 102 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 3.52 kg
Sales unit 1
Type of speaker
NUMBER ONE
SPH-225C
