. CC Pro Shop 100V højttaler - EDL-22/WS MONACOR .
100V højttaler - EDL-22/WS MONACOR
search
  • 100V højttaler - EDL-22/WS MONACOR
  • 100V højttaler - EDL-22/WS MONACOR

MONACOR 100V højttaler 6Wmax - EDL-22/WS

248,00 kr.
Inkl. moms
PA loftshøjttaler, lille og kompakt model, med meget fyldig lyd.
  • 100 V line-teknologi
  • Hurtig at montere med fjederbeslag
  • Hvidt plastikkabinet
  • Til lofter med en tykkelse fra 2 til 10 mm



Antal
På fjernlager

Ref: EDL-22/WS

Impedance (Z) -
Line technique 100
Frequency range 130-20,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 6/3/1.5 W
Peak music power output -
Sensitivity -
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

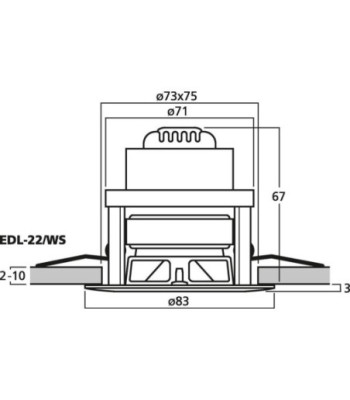

Mounting cutout Ø 73 mm
Mounting depth 67 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 83 mm x 70 mm
Outside diameter Ø 83 mm
Width Ø 83 mm
Height -
Depth 70 mm
Protective class -
Admiss. ambient temp. -
Weight 320 g
Sales unit -
Type of speaker 50
EDL-22/WS
