. CC Pro Shop 6 1/2´´ højttaler - SP-17/4 MONACOR .
6 1/2´´ højttaler - SP-17/4 MONACOR
search
  • 6 1/2´´ højttaler - SP-17/4 MONACOR
  • 6 1/2´´ højttaler - SP-17/4 MONACOR

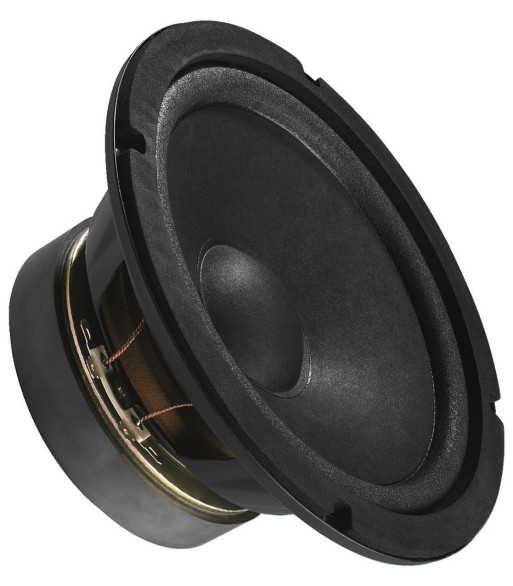

MONACOR 6 1/2´´ højttaler - SP-17/4

299,00 kr.
Inkl. moms
Universal speaker, 30 W, 4 _
  • For general applications and replacement purposes
  • High power capability
  • To be used in the bass-midrange
Antal
På fjernlager

Ref: SP-17/4

Impedance (Z) 4 _
Line technique -
Frequency range -
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 30 W
Peak music power output 60 W
Sensitivity -
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -

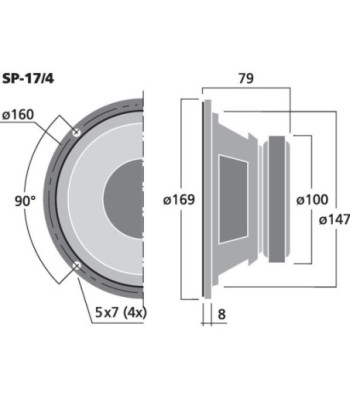

Magnet diameter Ø 100 mm
Mounting cutout Ø 147 mm
Mounting depth 71 mm
Mounting hole diameter Ø 160 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 169 mm x 79 mm
Outside diameter Ø 169 mm
Width Ø 169 mm
Height -
Depth 79 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1.086 kg
Sales unit 1
Type of speaker
SP-17/4

Specifikke referencer
