. CC Pro Shop 6´´ højttaler - SPH-6M MONACOR .
6´´ højttaler - SPH-6M MONACOR
search
  • 6´´ højttaler - SPH-6M MONACOR
  • 6´´ højttaler - SPH-6M MONACOR

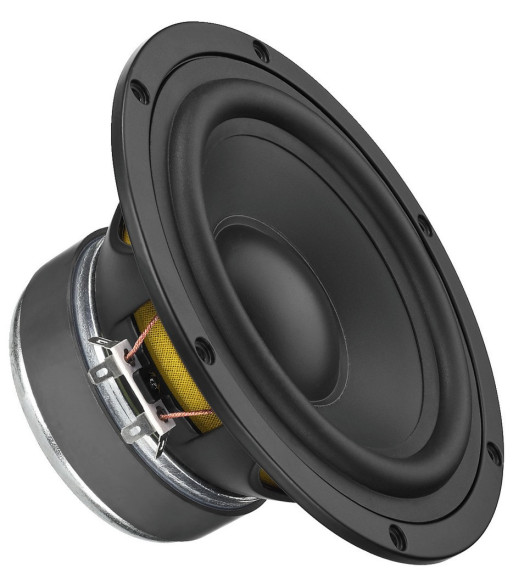

MONACOR 6´´ højttaler - SPH-6M

559,00 kr.
Inkl. moms
Hi-fi bass speaker, 60 W, 8 _
  • High-quality hi-fi bass speaker of long excursion
  • Damped low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core and protruding rear pole plate
  • Very well-suited for bass-reflex speaker systems
Klang+Ton 01/2014
"The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction."
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)
HOBBY HiFi 02/2012
"Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz)."
Antal
På fjernlager

Ref: SPH-6M

Impedance (Z) 8 _
Line technique -
Frequency range f3-3,000 Hz
Resonant frequency (fs) 39 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 60 W
Peak music power output 120 W
Sensitivity 88 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.78 mm/N
Moving mass (Mms) 20 g
Mech. Q factor (Qms) 2.26
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.30
Equivalent volume (Vas) 17.6 l
DC resistance (Re) 6.33 _
Force factor (BxL) 9.68 Tm
Voice coil induct. (Le) 0.82 mH
Voice coil diameter Ø 37 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 127 cm2
Magnet weight 630 g
Magnet diameter Ø 100 mm
Mounting cutout -
Mounting depth -
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 180 mm x 92 mm
Outside diameter Ø 180 mm
Width Ø 180 mm
Height -
Depth 92 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 2.005 kg
Sales unit 1
Type of speaker 6.5"
SPH-6M

Specifikke referencer
