. CC Pro Shop 4´´ højttaler - SPM-116/8 MONACOR .
4´´ højttaler - SPM-116/8 MONACOR
search
  • 4´´ højttaler - SPM-116/8 MONACOR
  • 4´´ højttaler - SPM-116/8 MONACOR

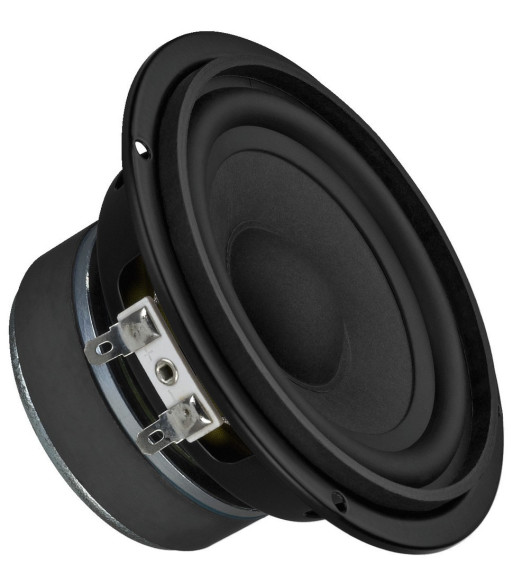

MONACOR 4´´ højttaler - SPM-116/8

177,00 kr.
Inkl. moms
Hi-fi bass-midrange speaker, 40 W, 8 _
  • Excellent replacement speaker of the same quality as from the original equipment manufacturer
  • Low-resonance paper cone
  • Long-term stable rubber surround
  • Also very well-suited for use as a full range speaker
Antal
På fjernlager

Ref: SPM-116/8

Impedance (Z) 8 _
Line technique -
Frequency range f3-18,000 Hz
Resonant frequency (fs) 75 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 40 W
Peak music power output 80 W
Sensitivity 87 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.98 mm/H
Moving mass (Mms) 3.8 g
Mech. Q factor (Qms) 1.9
Electr. Q factor (Qes) 0.81
Total Q factor (Qts) 0.57
Equivalent volume (Vas) 4.5 l
DC resistance (Re) 7.2 _
Force factor (BxL) 4.2 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 20.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.5 mm
Eff. cone area (Sd) 57 cm2
Magnet weight 230 g
Magnet diameter Ø 70 mm
Mounting cutout Ø 94 mm
Mounting depth 53 mm
Mounting hole diameter Ø 108 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 115 mm x 60 mm
Outside diameter Ø 115 mm
Width Ø 115 mm
Height -
Depth 60 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.557 kg
Sales unit 1
Type of speaker 4"
SPM-116/8
