IMG STAGELINE Aktiv line array - L-RAY/1000

18.749,00 kr.
Inkl. moms
Professional State-of-the-Art PA Technology at a Compact Size:

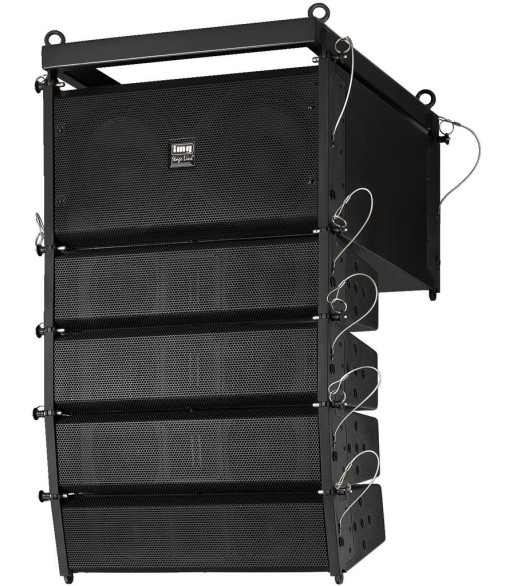

The active speaker array L-RAY/1000 from IMG STAGELINE impresses by a perfect sound with professional adjustment facilities, the advantages of the radiation typical of array, a high-quality workmanship and an amazing level stability.
Professional PA speaker array (controlled by DSP software), active, 700 W (350 W+350 W)
Compact array of high power capability with 4 mid-high range speaker units and a dual bass module, each section with its own 350 W power amplifier and controlling software (the configuration of the system is supported by a PC, but it operates as a stand-alone unit!). Supplied with extensive and variable equipment for suspended mounting systems (Flyware). The mid-high range systems are each equipped with 2 x 10 cm (4") high-performance speakers and a magnetostatic speaker for a perfect reproduction rich in detail. The dynamic characteristics are absolutely convincing, at the same time the tonality at the basic setting is very pleasant. Despite its compact size, the bass module with two 20 cm (8") bass speakers provides an amazingly deep bass reproduction and a high level stability which is only possible by using special bass speakers of very high power capability and the comprehensive DSP optimisation.
The software allows the following adjustments (min. system requirement is a Windows PC only, WIN98 or higher, with CD drive and interface):
  • Parametric equalizer (6 bands)
  • Filters (high-pass or low-pass up to 36 dB/oct. with various characteristics)
  • Level
  • Compression and limiting
  • Delay
Up to 10 L-RAY systems can be addressed via one RS-485 data bus. With the optional USB/RS-485 converter DA-70157, it is possible to connect a PC or laptop with USB interface to the serial RS-485 interface.
On delivery, the software of the system is matched to a perfect base linearity and can be used immediately! Otherwise, the software adjustments are extremely easy to do and sound engineers can even operate it intuitively.

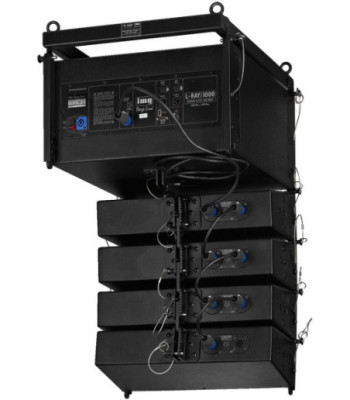

The system is supplied with a robust mounting frame which is both suitable for suspended installation and for floor and stage applications. The array elements can be curved in 1° steps. The individual components are locked via quick-release pins. The mounting frame also allows for suspended installation of the array elements only, without the subwoofer.
Furthermore, the array elements feature a connecting plate for a bracket for mounting it onto a stand. With the accessories LR-1000U and KM-21367, which are both available at option, the system also allows for a ground-stacked configuration. For this purpose, the subwoofer cabinet features a recessed M20 mounting plate.
The speaker cables with NEUTRIK SPEAKON connectors are in the scope of delivery and allow to connect the parts with each other and with the subwoofer.
Connection to the mains is done via a POWERCON jack, supplied with suitable mains cable AAC-115P.
The robust wooden cabinets feature grilles and a durable structured coating.
The L-RAY/1000 systems are a very high-quality solution for every PA application where both perfect tonality and perfect radiation across the room are required. The advantages of the system particularly take effect with fixed installations in clubs and discotheques as well as mobile stage applications of medium size. For larger PA applications, the use of several L-RAY in a cluster is recommended.
For installation by experts only! Please pay attention to the use of appropriate installation material, as otherwise persons and units will be put at risk.
L-RAY/1000 now with quick-release pins!
Xound 01/2009
Antal
På fjernlager

Ref: L-RAY/1000

Active/passive active
Line technique -
Impedance -
Frequency range 50-25,000 Hz
Amplifier power 700 W (350 W + 350 W)
Max. power 1,000 W
THD < 0.1%
S/N ratio 80 dB
Input signal 1-10 V/30 k_
System compact line array
Bass speaker 2 x 20 cm (8")
Midrange speaker 8 x 10 cm (4")
Tweeter 4 x magnetostatic speaker
Number of speakers -
Speaker size 20 cm (8")
Power rating -
Peak music power output -
Sensitivity 98 dB/W/m
Max. rated SPL 121 dB
Radiation angle, horizontal 120°
Radiation angle, vertical 30°-90° var.
Features
Material (housing/cabinet) wood
Colour black
Mounting facility -
Protected against ball rebound -
Protective class -
Admiss. ambient temp. 0-40 °C
Power supply _ 230 V/50 Hz/1,400 VA
Width 495 mm
Height 850 mm
Depth 610 mm
Weight 47.88 kg
Inputs XLR jack (line),
NEUTRIK SPEAKON (speaker)
PowerCon (power supply)
Outputs XLR par. out (line),
NEUTRIK SPEAKON par. out (speaker)
Replacement voice coil
Other features interface for DSP programming:
USB, RS-232, RS-485 IN & OUT,
supplied with software which is both
extremely easy to use and very efficient
IMG STAGELINE
L-RAY/1000
