. MONACOR 100V forstærker 4x120W digital - PA-4120D .
MONACOR 100V forstærker 4x120W digital - PA-4120D
search
  • MONACOR 100V forstærker 4x120W digital - PA-4120D
  • MONACOR 100V forstærker 4x120W digital - PA-4120D
  • MONACOR 100V forstærker 4x120W digital - PA-4120D

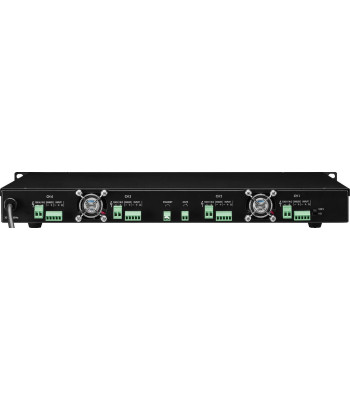

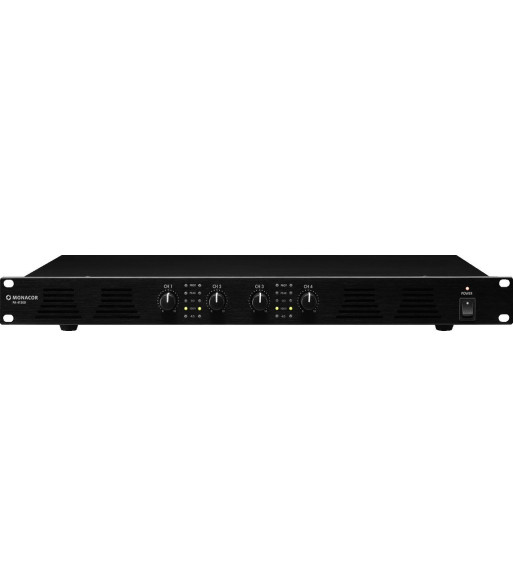

MONACOR 100V forstærker 4x120W digital - PA-4120D

8.159,00 kr.
Inkl. moms

4-channel class D PA power amplifier

  • 4 x 120 W
  • Class D concept with a high efficiency to cut energy costs
  • Temperature-controlled fan, continuously adjustable
  • Connection for external on/off switch
  • Connection for external mute switch
  • LED indication for protect, peak, signal and 100 V/4 _ operation

Antal
På fjernlager

Ref: PA-4120D

Peak output power -
Power rating 480 W
Power rating at 2 _ -
Power rating at 4 _ 4 x 120 W
Power rating at 8 _ -
Power rating at 16 _ -
Power rating at 100 V 4 x 120 W
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance 100 V/83 _, 4 _
Channels 4
Zones -
Inputs 775 mV/20 k_, bal.
Attenuation factor -
Frequency range 80-16,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass -
Equalizer midrange -
Equalizer treble -
S/N ratio > 95 dBA
Crosstalk attenuation -
THD < 0.1%
Phantom power -
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 850 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 52 mm
Depth 320 mm
Rack spaces, RS 1
Weight 5.1 kg
Connections screw terminals (inputs),

screw terminals (speakers)
PA-4120D
