. Hybrid Cable - Power & DMX - Neutrik® XLR 3-pole x TRUE1® - 1.5 m .
Hybrid Cable | Power & DMX | Neutrik® XLR 3-pole x TRUE1® | 1.5 m
search
  • Hybrid Cable | Power & DMX | Neutrik® XLR 3-pole x TRUE1® | 1.5 m

Hybrid Cable - Power & DMX - Neutrik® XLR 3-pole x TRUE1® - 1.5 m

739,00 kr.
Inkl. moms
5 STAR H TCON D 0150

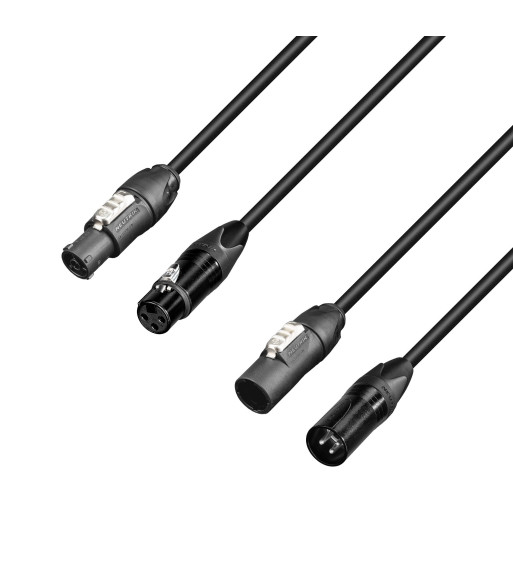

Hybrid Cable for DMX & power supply

Antal
På fjernlager

Ref: 8101PSDP0150N

  • The Hybrid Cables from our 5 STAR SERIES are manufactured in the EU
  • Perfectly suited for the parallel supply of devices with power and DMX signals
  • With original connectors from Neutrik®
  • XLR Female to XLR Male & TRUE1-TOP®
  • With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 1.5 mm² mains cable
  • Includes loose, transparent heat-shrink tubing for labeling the cable
  • The splice length is 40 cm

General

Cable length1.5 m
Split end length40 cm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter17 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 3-pole female
Model name plug 1Neutrik NC3FXX-BAG
Contact material plug 1Silver plated
Connector type plug 2XLR 3-pole male
Model name plug 2Neutrik NC3MXX-BAG
Contact material plug 2Silver plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m55 pF
Conductor impedance/km85 Ohm
ShieldSpiral copper shielding
Shielding structure7 x 0.20 mm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter5 mm

Mains plug

Plug type connector 1Mains plug device female IP65
Model name connector 1Neutrik NAC3FX-W-TOP
Plug type connector 2Mains plug device male IP65
Model name connector 2Neutrik NAC3MX-W-TOP

Mains line

Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 2,5 mm²
AWG13
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Environmental

Temperature range-20 - 70 °C

Dimensions & weight

Weight430 g
Adam Hall Cables
8101PSDP0150N
