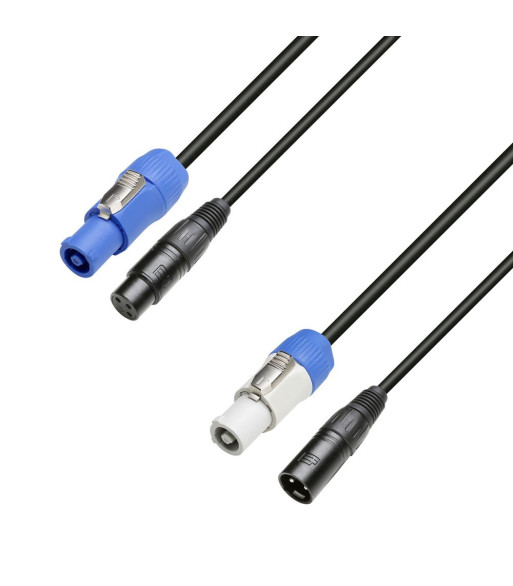

. Hybrid Cable - Power & DMX - XLR 3-pole x Adam Hall® K4CPFIN & OUT - 10 m .
Hybrid Cable | Power & DMX | XLR 3-pole x Adam Hall® K4CPFIN & OUT | 10 m
search
  • Hybrid Cable | Power & DMX | XLR 3-pole x Adam Hall® K4CPFIN & OUT | 10 m

Hybrid Cable - Power & DMX - XLR 3-pole x Adam Hall® K4CPFIN & OUT - 10 m

819,00 kr.
Inkl. moms

3 STAR H PCON D 1000

Hybrid Cable for DMX & power supply

Antal
På fjernlager

Ref: 8101PSDT1000

  • High-quality Hybrid Cable from our 3 STAR SERIES
  • Perfectly suited for supplying devices with power and DMX signals in parallel
  • Equipped with the powerCON® compatible power connectors from Adam Hall®
  • With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 1.5 mm² mains cable
  • The splice length is 40 cm

General

Cable length 10 m
Split end length 40 cm
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 15 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 3-pole female
Model name plug 1 Adam Hall 7849
Contact material plug 1 Silver plated
Connector type plug 2 XLR 3-pole male
Model name plug 2 Adam Hall 7850
Contact material plug 2 Silver plated

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,22 mm²
AWG 24
Capacity/m 55 pF
Cable diameter 5 mm

Mains plug

Plug type connector 1 Mains plug female power in
Model name connector 1 Adam Hall 7923V2
Plug type connector 2 Mains plug female power out
Model name connector 2 Adam Hall 7924V2

Mains line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 3 x 1,5 mm²
AWG 16
Cable diameter 10 mm

Environmental

Temperature range -20 - 70 °C

Dimensions & weight

Weight 2.6 kg
Adam Hall Cables
8101PSDT1000

Specifikke referencer
