. Hybrid Cable - DMX Neutrik® 3-pole XLR x powerCON® - 5 m .
Hybrid Cable | DMX Neutrik® 3-pole XLR x powerCON® | 5 m
search
  • Hybrid Cable | DMX Neutrik® 3-pole XLR x powerCON® | 5 m

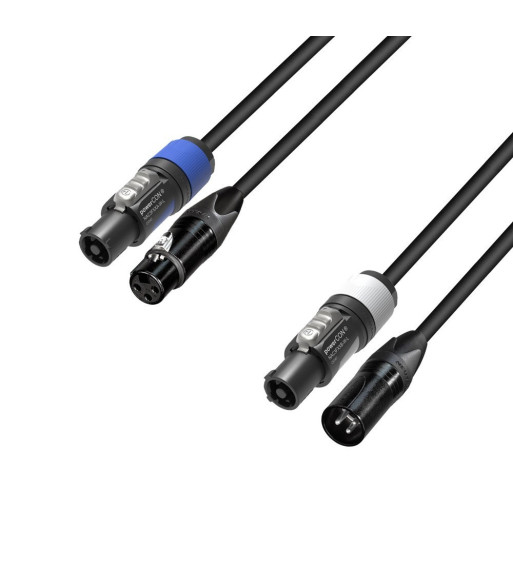

Hybrid Cable - DMX Neutrik® 3-pole XLR x powerCON® - 5 m

759,00 kr.
Inkl. moms
5 STAR H PCON D 0500

For looping DMX applications through, we have added the new hybrid cables to our 5 STAR SERIES, which is made in EU. Assembled with original Neutrik powerCON® & 3-pole XLR you have the right connectors on hand.

This product is made for DMX & AES/EBU applications. For audio you can also check the solutions from Adam Hall Cables®

Antal
På fjernlager

Ref: K5HPCOND0500

  • No more tangles cables with our power- & DMX hybrid cable
  • Power supply & DMX, AES/EBU signal transmission in only one cable
  • With original Neutrik® 3-pole XLR & powerCON®
  • Perfect for looping DMX, AES/EBU signals through
  • Power line conductor: 3 x 2.5 mm² & DMX line conductor: 2 x 0.22 mm²
  • Including a transparent loose heatshrink for labeling the cables

General

Cable length5 m
Split end length40 cm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter17 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 3-pole female
Model name plug 1Neutrik NC3FXX-BAG
Contact material plug 1Silver plated
Connector type plug 2XLR 3-pole male
Model name plug 2Neutrik NC3MXX-BAG
Contact material plug 2Silver plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m55 pF
Conductor impedance/km85 Ohm
Characteristic impedance110 _
ShieldSpiral copper shielding
Cable jacketPVC (Polyvinyl chloride)
Cable diameter5 mm

Mains plug

Plug type connector 1Mains plug female power in
Model name connector 1Neutrik NAC3FXXA-W-L
Plug type connector 2Mains plug female power out
Model name connector 2Neutrik NAC3FXXB-W-L

Mains line

Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 2,5 mm²
AWG13
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Dimensions & weight

Weight1.5 kg
Adam Hall Cables
K5HPCOND0500
