. Hybrid Cable - Power & DMX - Neutrik® XLR 5-pole x TRUE1® - 5 m .
Hybrid Cable | Power & DMX | Neutrik® XLR 5-pole x TRUE1® | 5 m
search
  • Hybrid Cable | Power & DMX | Neutrik® XLR 5-pole x TRUE1® | 5 m
  • Hybrid Cable | Power & DMX | Neutrik® XLR 5-pole x TRUE1® | 5 m

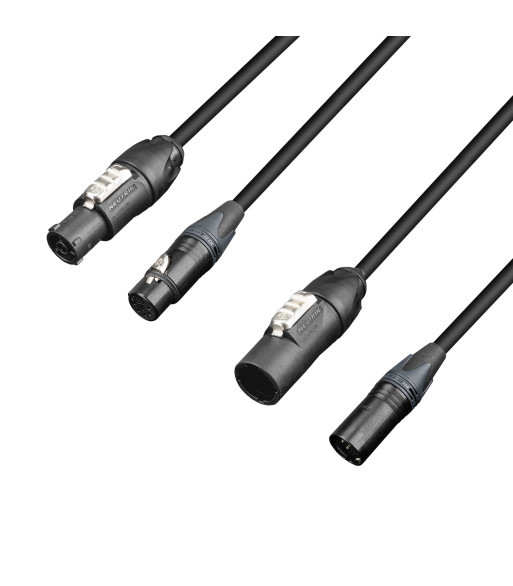

Hybrid Cable - Power & DMX - Neutrik® XLR 5-pole x TRUE1® - 5 m

1.059,00 kr.
Inkl. moms

5 STAR H TCON 5D 0500

Hybrid Cable for DMX & power supply

Antal
På fjernlager

Ref: 8101PSDP50500N

  • The Hybrid Cables from our 5 STAR SERIES are manufactured in the EU
  • Perfectly suited for the parallel supply of devices with power and DMX signals
  • With original connectors from Neutrik®
  • XLR 5-pole Female to XLR 5-pole Male & TRUE1-TOP®
  • With a conductor cross-section of 2 x 0.22 mm² DMX cable and 3 x 1.5 mm² mains cable
  • Includes loose, transparent heat-shrink tubing for labeling the cable
  • The splice length is 40 cm

General

Cable length 5 m
Split end length 40 cm
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 17 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 5-pole female
Model name plug 1 Neutrik NC5FXX-BAG
Contact material plug 1 Silver plated
Connector type plug 2 XLR 5-pole male
Model name plug 2 Neutrik NC5MXX-BAG
Contact material plug 2 Silver plated

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,22 mm²
AWG 24
Capacity/m 55 pF
Conductor impedance/km 85 Ohm
Shield Spiral copper shielding
Shielding structure 7 x 0.20 mm
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 5 mm

Mains plug

Plug type connector 1 Mains plug device female IP65
Model name connector 1 Neutrik NAC3FX-W-TOP
Plug type connector 2 Mains plug device male IP65
Model name connector 2 Neutrik NAC3MX-W-TOP

Mains line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 3 x 2,5 mm²
AWG 13
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 10 mm

Environmental

Temperature range -20 - 70 °C

Dimensions & weight

Weight 930 g
Adam Hall Cables
8101PSDP50500N

Produktinformation

Farve
Sølv
Kabel: længde
5.00 meter
Kabel: Stik - start
XLR - 5pol - hun
Kabel: Stik - slut
XLR - 5pol - han
Kabel: type
Kombi kabel: Strøm & Signal - 1x Strøm + 1x Signalkabel
