. DMX Cable 5-pole IP65 XLR female x 5-pole IP65 XLR male - 0.5 m .
DMX Cable 5-pole IP65 XLR female x 5-pole IP65 XLR male | 0.5 m
search
  • DMX Cable 5-pole IP65 XLR female x 5-pole IP65 XLR male | 0.5 m
  • DMX Cable 5-pole IP65 XLR female x 5-pole IP65 XLR male | 0.5 m

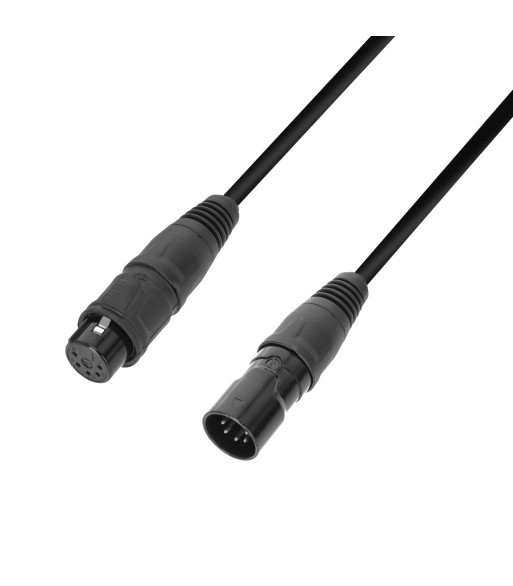

DMX Cable 5-pole IP65 XLR female x 5-pole IP65 XLR male - 0.5 m

119,00 kr.
Inkl. moms

4 STAR DGH 0050 IP65

This high-quality cable assembly uses highly flexible AES/EBU & DMX cable with twin OFC conductors, copper spiral plus AL/PT foil shielding and rugged PVC jacket. It is equipped with heavy-duty, IP65 rated 5-pole male and female XLR connectors that are protected against dust and water ingress.

Antal
På fjernlager

Ref: K4DGH0050IP65

  • Highly flexible AES/EBU & DMX cable
  • Twin OFC conductors
  • Dual shielding for 100% coverage
  • Heavy-duty 5-pole connectors with IP65 rating

Product type Plugs and Connectors
Product type Plugs and Connectors
Product type Bulk Cable
Type DMX & AES/EBU Cable
Type XLR Connectors
Type XLR Connectors
Color Black
Overall diameter 6.5 (+/- 0.2 ) mm
Poles 5
Poles 5
Gender male
Gender female
Center conductor cross section 0.34 mm²
Center conductor material Copper, OFC
Cable diameter 3.5 - 8 mm
Cable diameter 3.5 - 8 mm
Center conductor construction 7 x 0.25 mm
Number of internal conductors 2
Contacts gold plated
Contacts gold plated
Connection type solder contacts
Connection type solder contacts
Shield material copper
Shield Braided shielding
Color silver, black + orange
Color silver, black + orange
Housing die-cast zinc
Housing die-cast zinc
Line resistance 53 Ohm(s)
Capacitance 65 pF/m
Length 73.6 mm
Length 70.8 mm
Diameter 18.9 mm
Diameter 16,8 mm
Jacket material PVC
Weight 0,05 kg
Weight 0,02 kg
Weight 0,02 kg

General

Cable length 0.5 m
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 6.5 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 5-pole female
Model name plug 1 Adam Hall K4CXF5IP65
Connector type plug 2 XLR 5-pole male
Model name plug 2 Adam Hall K4CXM5IP65

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,34 mm²
AWG 22
Capacity/m 65 pF
Conductor impedance/km 53 Ohm
Shield Braided copper shielding

Environmental

Protection class IP65
Temperature range -20 - 70 °C

Dimensions & weight

Weight 50 g
Adam Hall Cables
K4DGH0050IP65

Produktinformation

Farve
Sort
Kabel: længde
0.5 meter
Kabel: Stik - start
XLR - 5pol - hun
Kabel: Stik - slut
XLR - 5pol - han

Specifikke referencer
