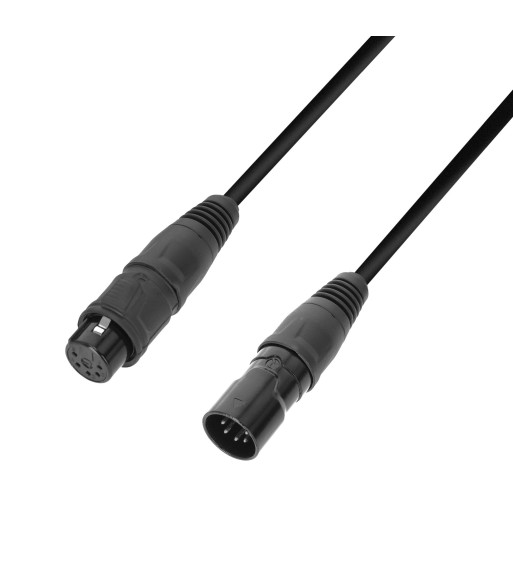

. DMX Cable - Rean® XLR 5-pole IP65 - 5 m .
DMX Cable | Rean® XLR 5-pole IP65 | 5 m
search
  • DMX Cable | Rean® XLR 5-pole IP65 | 5 m
  • DMX Cable | Rean® XLR 5-pole IP65 | 5 m

DMX Cable - Rean® XLR 5-pole IP65 - 5 m

169,00 kr.
Inkl. moms
4 STAR DGH 0500 IP65

This high-quality cable assembly uses highly flexible AES/EBU & DMX cable with twin OFC conductors, copper spiral plus AL/PT foil shielding and rugged PVC jacket. It is equipped with heavy-duty, IP65 rated 5-pole male and female XLR connectors that are protected against dust and water ingress.

Antal
På fjernlager

Ref: K4DGH0500IP65

  • Professional DMX, AES/EBU cable from our 4 Star Series
  • With high quality REAN (A brand of the Neutrik Group) connectors
  • 5-pin XLR with two signal conductors connected
  • Robust and flexible cable with larger inner conductor cross-section
  • Shielding made of copper braiding

Product typePlugs and Connectors
Product typeBulk Cable
Product typePlugs and Connectors
TypeXLR Connectors
TypeDMX & AES/EBU Cable
TypeXLR Connectors
ColorBlack
Overall diameter6.5 (+/- 0.2 ) mm
Poles5
Poles5
Gendermale
Genderfemale
Center conductor cross section0.34 mm²
Center conductor materialCopper, OFC
Cable diameter3.5 - 8 mm
Cable diameter3.5 - 8 mm
Center conductor construction7 x 0.25 mm
Number of internal conductors2
Contactsgold plated
Contactsgold plated
Connection typesolder contacts
Connection typesolder contacts
Shield materialcopper
ShieldBraided shielding
Colorsilver, black + orange
Colorsilver, black + orange
Housingdie-cast zinc
Housingdie-cast zinc
Line resistance53 Ohm(s)
Capacitance65 pF/m
Length73.6 mm
Length70.8 mm
Diameter18.9 mm
Diameter16,8 mm
Jacket materialPVC
Weight0,05 kg
Weight0,02 kg
Weight0,02 kg

General

Cable length5 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter6.5 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 5-pole female
Model name plug 1Adam Hall K4CXF5IP65
Connector type plug 2XLR 5-pole male
Model name plug 2Adam Hall K4CXM5IP65

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,34 mm²
AWG22
Capacity/m65 pF
Conductor impedance/km53 Ohm
ShieldBraided copper shielding

Environmental

Protection classIP65
Temperature range-20 - 70 °C

Dimensions & weight

Weight230 g
Adam Hall Cables
K4DGH0500IP65
