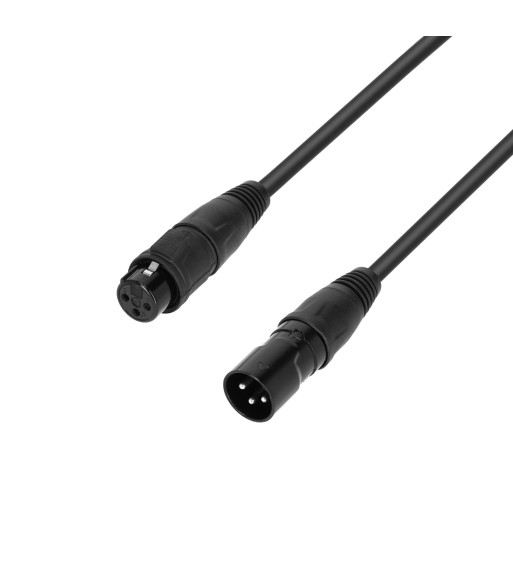

. DMX Cable - Rean® XLR 3-pole IP65 - 10 m .
DMX Cable | Rean® XLR 3-pole IP65 | 10 m
search
  • DMX Cable | Rean® XLR 3-pole IP65 | 10 m
  • DMX Cable | Rean® XLR 3-pole IP65 | 10 m

DMX Cable - Rean® XLR 3-pole IP65 - 10 m

209,00 kr.
Inkl. moms

4 STAR DMF 1000 IP65

  • High Flexible AES/EBU and DMX-conformant oxygen free cable with professional Heavy-duty 3-Pin connector suitable for outdoor use
  • Dust- and waterproof grade IP65
Antal
På fjernlager

Ref: K4DMF1000IP65

  • Professional DMX, AES/EBU cable from our 4 STAR SERIES
  • With high-quality XLR connectors from Rean® (A brand of the Neutrik® group)
  • Optimum quality thanks to the use of silver-plated contacts
  • The cable is very flexible yet robust thanks to its soft PVC jacket and narrow diameter
  • For professional use in the studio or on stage

Product type Plugs and Connectors
Product type Plugs and Connectors
Product type Bulk Cable
Type DMX & AES/EBU Cable
Type XLR Connectors
Type XLR Connectors
Color Black
Overall diameter 6.5 (+/- 0.2 ) mm
Poles 3
Poles 3
Gender female
Gender male
Center conductor cross section 0.34 mm²
Cable diameter 3.5 - 8 mm
Center conductor material Copper, OFC
Cable diameter 3.5 - 8 mm
Center conductor construction 7 x 0.25 mm
Number of internal conductors 2
Contacts gold plated
Contacts gold plated
Connection type solder contacts
Connection type solder contacts
Shield material copper
Shield Braided shielding
Color silver, black + orange
Color silver, black + orange
Housing die-cast zinc
Housing die-cast zinc
Line resistance 53 Ohm(s)
Capacitance 65 pF/m
Length 70.8 mm
Length 73.6 mm
Diameter 16,8 mm
Diameter 18.9 mm
Jacket material PVC
Weight 0,05 kg
Weight 0,02 kg
Weight 0,02 kg

General

Cable length 10 m
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 6.5 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 3-pole female
Model name plug 1 Adam Hall K4CXF3IP65
Connector type plug 2 XLR 3-pole male
Model name plug 2 Adam Hall K4CXM3IP65

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,34 mm²
AWG 22
Capacity/m 65 pF
Conductor impedance/km 53 Ohm

Environmental

Protection class IP65
Temperature range -20 - 70 °C

Dimensions & weight

Weight 381 g
Adam Hall Cables
K4DMF1000IP65

Produktinformation

Farve
Sort
Kabel: længde
10.00 meter
Kabel: Stik - start
XLR - 3pol - hun
Kabel: Stik - slut
XLR - 3pol - han

Specifikke referencer
